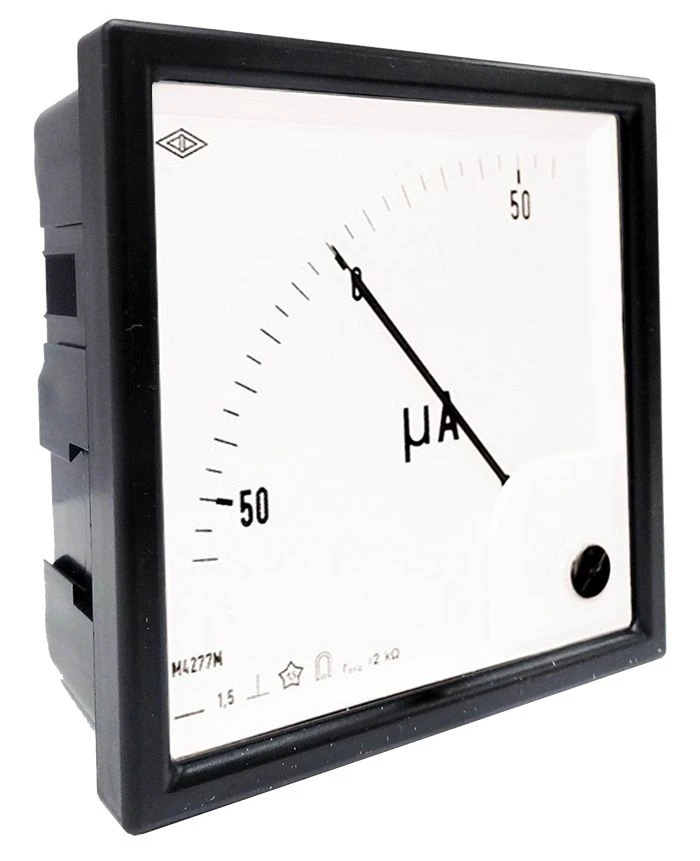

Microammeters and Millivoltmeters DC Panel Meters M4277M for Accurate Measurement

Panel Analog Measuring Instruments

Manufacturer: ELECTROPRIBOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The M4277M instruments are designed to measure current and voltage in DC circuits. The devices have an angular arrangement of the measuring mechanism, square faceplates and square housings. The instruments can have measuring ranges with a zero mark inside or at the edge of the ranges.

The instruments can be manufactured with other measuring ranges and with scales calibrated in units of any physical quantities. Instruments are verified in accordance with the requirements of GOST 8.497-83. The dials and scales of the instruments are made in accordance with Din 43802.

M4277M are included in the State Register of SI of the Russian Federation No. 37282-17. Interverification interval is 2 years.

Specifications

Dimensions of the front panel, mm

72x72

Panel cutout, mm

68x68

Accuracy class

1,5

Degree of protection IP

Dustproof IP50

Weight, kg, not more

0,2

Operating temperature range

-30 …+50 °C

Current measuring range (direct connection)

40 µA; 60 µA; 100 µA; 150 µA; 250 µA; 400 µA; 600 µA

Voltage measuring range (connection with a pair of 0.035 ohm calibrated wires)

25 mV; 40 mV; 60 mV; 100 mV; 150 mV; 250 mV; 400 mV; 600 mV

Scale length, mm, not less
