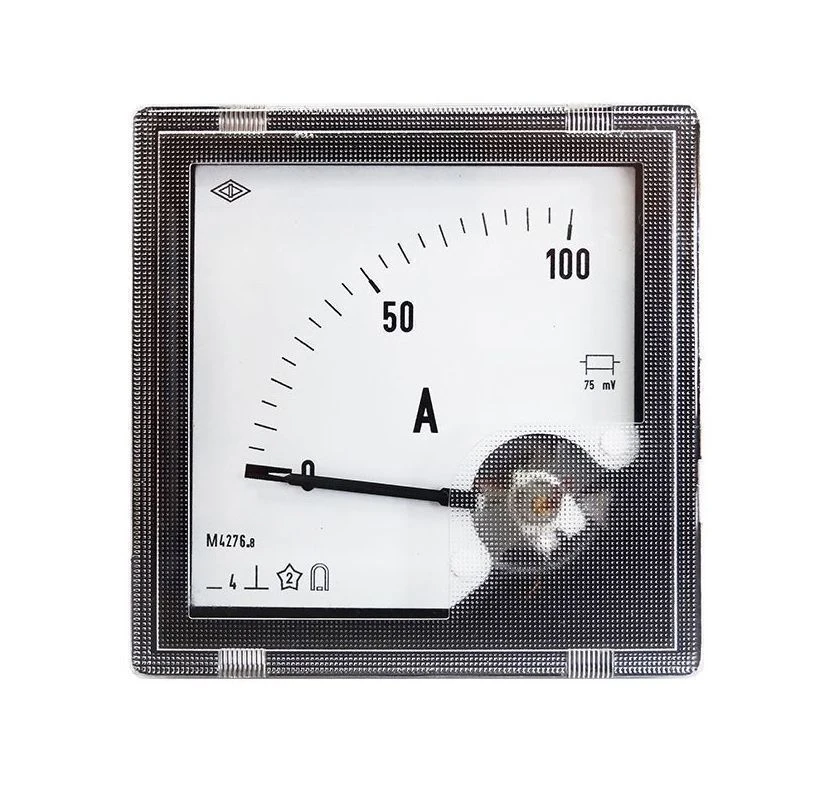

Microammeter, Milliammeter, Ammeter, and Voltmeter for Industrial Applications M4276.8
Manufacturer:
ELECTROPRIBOR OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The M4276.8 instruments are designed to measure current in chargers and other DC devices in various industries in temperate climate conditions. The dials and scales of the instruments are made in accordance with Din 43802. M4276.8 are included in the State Register of Measuring Instruments of the Russian Federation. Interverification interval is 2 years.
Specifications
Dimensions of the front panel, mm
72x72
Panel cutout, mm
68x68
Scale length, mm, not less
57
Accuracy class
4,0
Degree of protection IP
Dustproof IP50
Weight, kg, not more
0,15
Operating temperature range
-30...+50 °?
Measuring range (connection with 75 mV external shunt and a pair of 0.035 ohm calibrated wires)
A - 30; 50; 75; 100; 150; 300; 500; 750; kA - 1.5; 3
