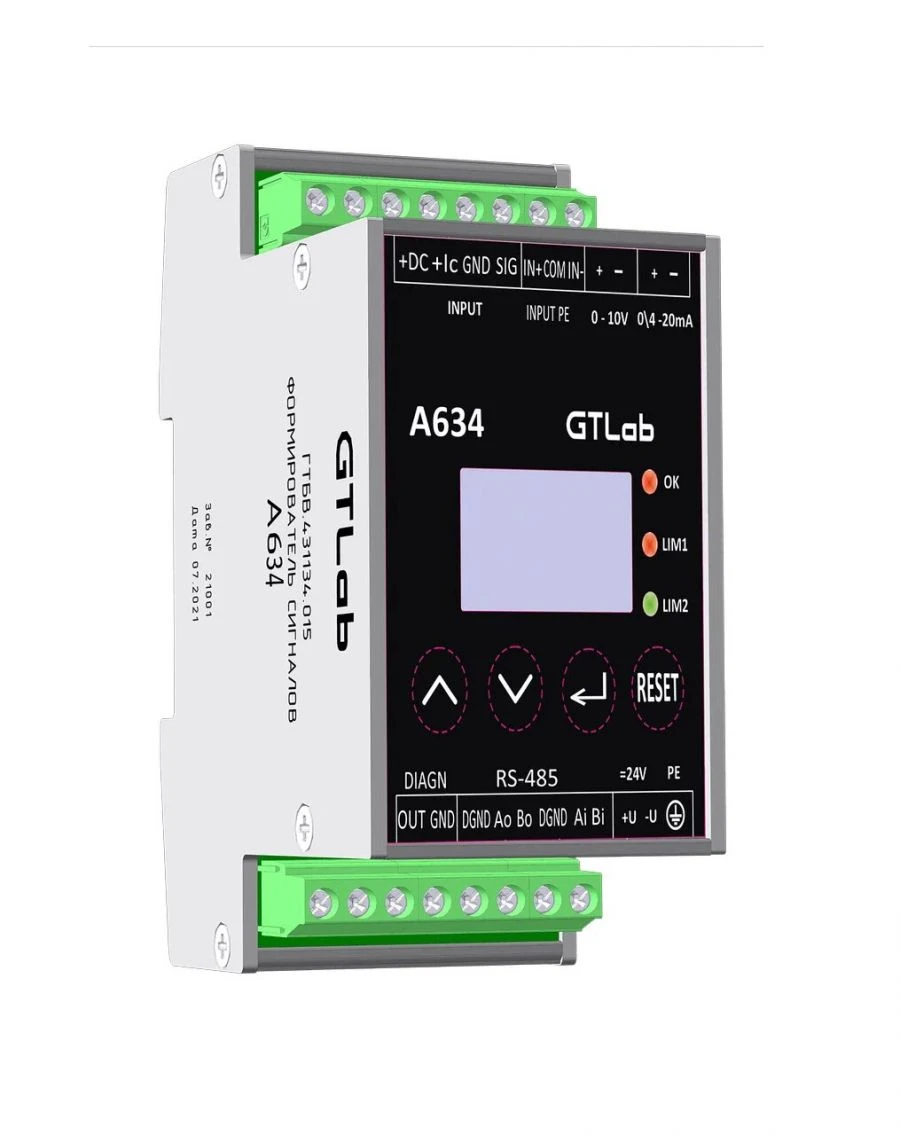

Available for ImportVibration Controller A634 for Accurate Measurement and Control of Vibrational Processes
Manufacturer:GTLAB LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Vibration controllers are designed to measure vibration processes and transfer the obtained values to automatic control systems of technological equipment.
Specifications
Measured vibration velocity range, RMS
0 ... 10 mm/s
Measurement ranges of relative vibration displacement ranges
0 ... 125 microns
Static clearance measurement ranges
0,2 ... 2,2 mm
Operating frequency range of measured vibration velocity (AFC non-uniformity - 1 dB)
1 ... 1 000 Hz
Operating frequency range of the measured vibration displacement (ACF non-uniformity - 1 dB)
1 ... 10 000 Hz
Maximum input charge (peak)
± 5 000 pCal
Maximum AC input voltage
± 5 ?
Output
Voltage 0 ... 10 ?
Data exchange in the information system
RS485
Input/output connectors
screw terminals
Measurement error in the operating temperature range
±2 %
Measurement error
±2 %
Sensor supply voltage
IEPE 24 ± 2 V
IEPE sensor supply current (±10 %)
IEPE 5.7 mA
Parameters of built-in comparators
Values of set thresholds 0,1 -100 mm/sec
Conditions for issuing exceedance signals
Continuous exceeding of the set threshold value by the informative signal within 0-100 s
Trigger mode
with locking or self-repairing system
Self-recovery condition
Reduces the threshold level by 6 %
Vibration control delay after the self-recovery operating mode is established
0 or 20 s
Information displayed on the built-in display
Values of measured vibration velocity, relative vibration displacement or static clearance RMS.
Consumption current
< 200 mA
DIN rail mounting
Armoured glass
Weight
200 year
Feature
Operation with charge PE vibration transducers, with integrated electronics of IEPE type, with integrated electronics with positive supply and voltage output, with eddy current signal conditioners.
Operating temperature range
-40...70 °C
Step of setting the time of exceeding the threshold values
1
Power supply voltage
18...30 V
Maximum DC input voltage
24 V
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
