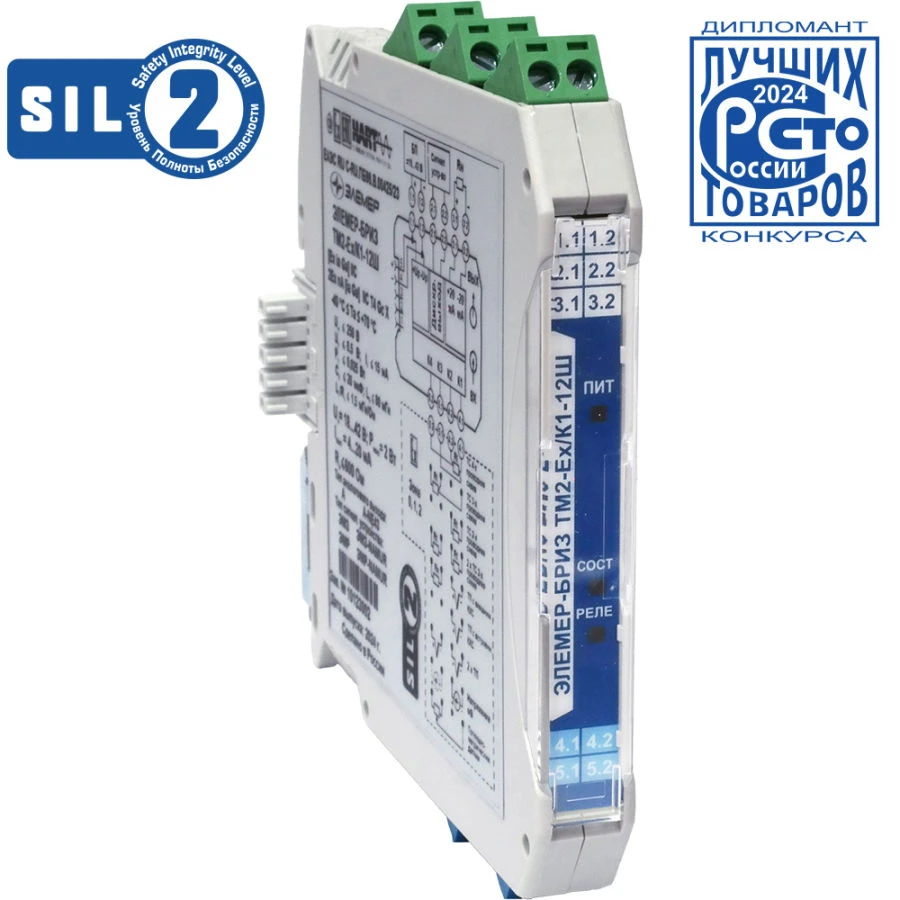

Converters measuring (intrinsic protection barriers) "ELEMER-BRIZ TM2-Ex"

Digital Signal Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Elemer-BRIZ series spark protection barriers are designed for installation in control cabinets. The devices provide explosion protection of [Ex ia Ga] IIC and 2Ex nA [ia Ga] IIC T4 Gc X type. The active intrinsic protection barrier ELEMER-BRIZ TM2-Ex with extended functionality enables measurements to be carried out using a 4-wire circuit. Forms an intrinsically safe circuit to the hazardous area, is configurable and operates via HART version 7. It has a separate signalling device. Barriers ELEMER-BRIZ TM2-Ex are designed to protect equipment operating in potentially hazardous areas with possible detonation. This problem is actual for enterprises of oil, gas and chemical industries. Due to the compact size of the housing thickness of only 12.5 (17.5) mm, ELEMER-BRIZ TM2-Ex are placed in the automation cabinet in the explosion-proof zone on a DIN-rail, which allows to significantly save useful space of the cabinet, and protect devices operating inside the hazardous area.

Technical Specifications

Output relay	Electromechanical relay with parameters 30 V / 1 A DC, or 125 V / 0.3 A AC
Electromagnetic compatibility (GOST 32137-2013)	III-A
Housing width	17.5 mm
Galvanic isolation of channels from each other and from power supply circuits	Armoured glass
Power supply voltage	18...42 V
Design variant with common power supply bus	Armoured glass
UPB 2 (SIL2)	Armoured glass
Inspection interval	Up to 5 years
Climatic version	-20...70 °C
Input signal type	TS (2, 3, 4 wire circuits), TP, mV or potentiometric sensor (0,1...10 kOhm)
Output signal type	4...20 mA (+HART)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
