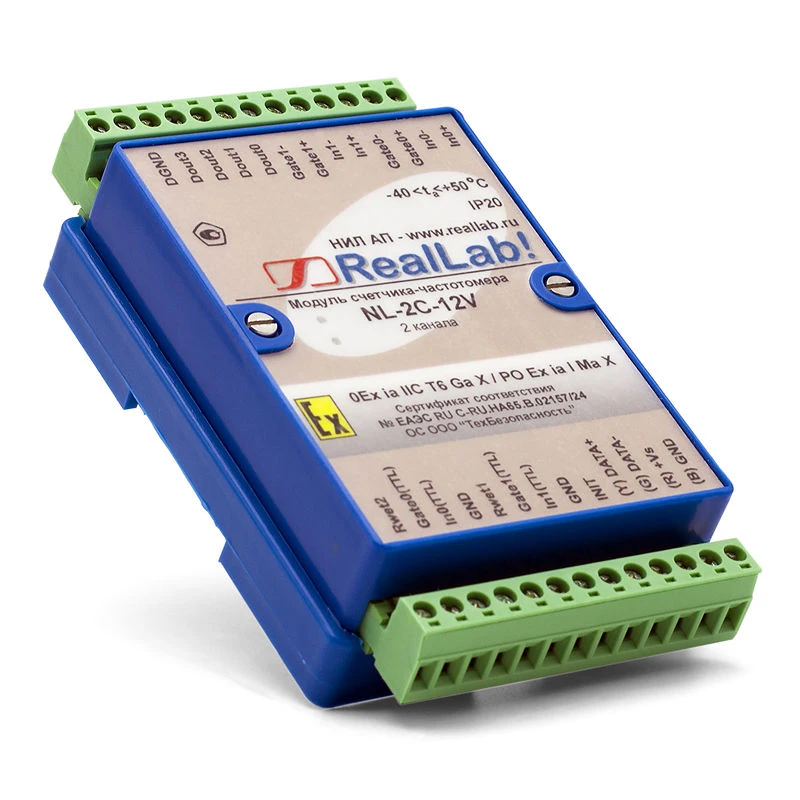

NL-2C-12V Intrinsically Safe Pulse Counter/Frequency Counter Module

Function: pulse counter/frequency meter Explosion protection marking: 0Ex ia IIC T6 Ga X or PO Ex ia I Ma X Channels and digits: 2 independent channels of 32 digits Maximum frequency: 200 kHz Inputs: isolated inputs 3.7 kV Non-isolated inputs: non-isolated inputs with software-configurable logic thresholds Power supply: dry contact power supply outputs Digital filter: tunable digital filter Capabilities: count resolution inputs Discrete output: 3 isolated discrete output channels Temperature: temperature range from -40 to +50 C Connection interface: RS-485, Modbus RTU and DCON protocol Power supply voltage: 10 V to 13 V Power consumption: 0.7 W OKPD2 Code: 26.51.43.117 Dimensions (HxWxH): 123x76x33 mm Warranty: 18 months
