Controller of photovoltaic modules UG Sunlogic - 1500/300/12

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

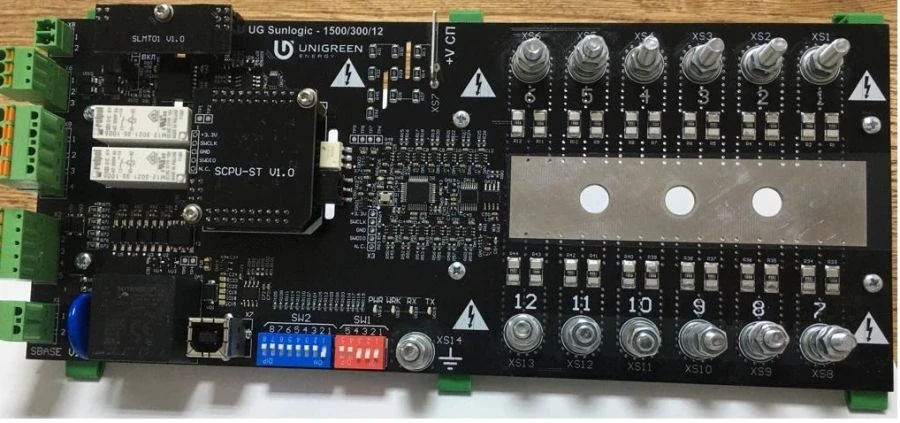

The controller "UG Sunlogic - 1500/300/12" is designed for use in solar power plants of various sizes. It measures in real time the main operating parameters of solar panel assemblies consisting of photovoltaic modules (PV modules): current, voltage and temperature. The controller allows quick identification of possible problems and equipment diagnostics. The controller "UG Sunlogic - 1500/300/12" consists of three main components: main board, processor module and temperature sensor module. The controller has an unencapsulated design and provides for mounting on a DIN-rail by means of plastic brackets.
To connect external circuits, the controller includes such switching equipment as bolt terminals, knife terminals and connectors.
The controller has 12 DC current measurement channels of 25A each, 1 voltage measurement channel from 0 to 1700V, 230V 50Hz supply voltage, RS-485 communication interface via MODBUS RTU protocol (slave)..

Specifications

Number of DC measurement channels (circuits) B1/B8 2100/900 MHz

Number of DC voltage measurement channels (circuits) 1

Supply Voltage 50 Hz 230 V

Power supply capacity 10 W

Operating temperature range -40...70 °C

DC voltage range 0...1700

Overall dimensions (W×H×H) 258x108x50

Mode of operation Round-the-clock

Measuring range of initial magnetic permeability absent

Weight 2

Name absent

Measurement of parameters of low-current single- and double-stable electromagnetic DC relays with up to 8 windings and up to 12 absent

Measurement of DC current and voltage signals in the control of static parameters of semiconductor devices on the wafer and in t absent

Range of set and measured voltages 0...1700 V

Setting and measuring current range -4...25 A

Availability of the option "Switchboard for thermal tests" absent

Integration with probe dispensers, test equipment, external instruments via interfaces absent

Resistance of contact circuit at contact current 0,1...100 mA 2000 ohm

Presence of the option of supplying control current and (or) voltage to the relay windings (creation and execution of pulse-step absent

Number of installation sites 3 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
