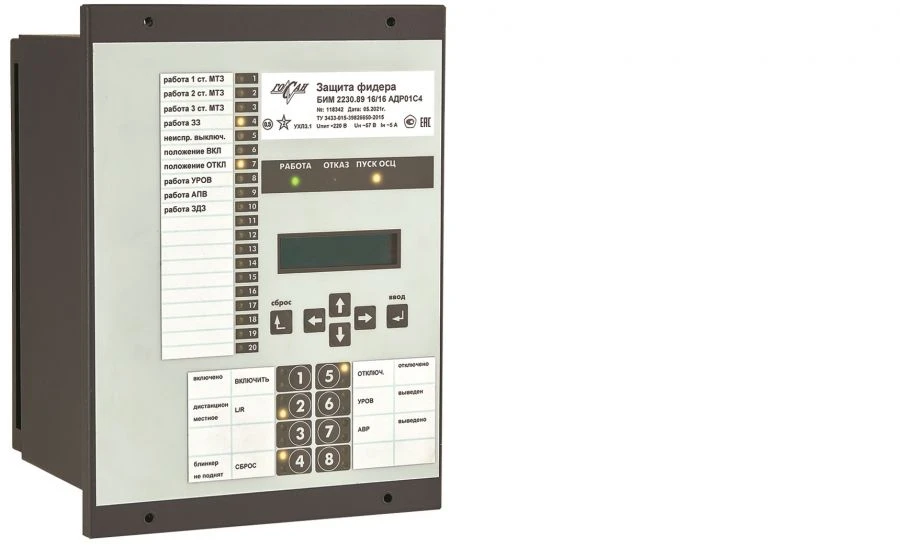

Connection terminal BIM2XXX

BIM2XXX bay terminal is a multifunctional microprocessor-based device for interfacing with electrical objects. The set of functions of BIM includes: -Relay protection and automation, control of switching equipment; -Meters of current values of DC and AC signals for three and single-phase electrical circuits. For AC signals are measured: current values, symmetrical components of the main harmonic, relative phase angles of the main harmonic, power (active, reactive, total), both 3-phase and phase-by-phase, frequency of the main harmonic. -Digital oscilloscope with a set of triggers; -Event recorder, which records the moments of change of states and the current state of discrete inputs and outputs of the device. If necessary, pulse counters are organised on the inputs; - AC and DC electric energy counters; -Quality control of electrical energy.
