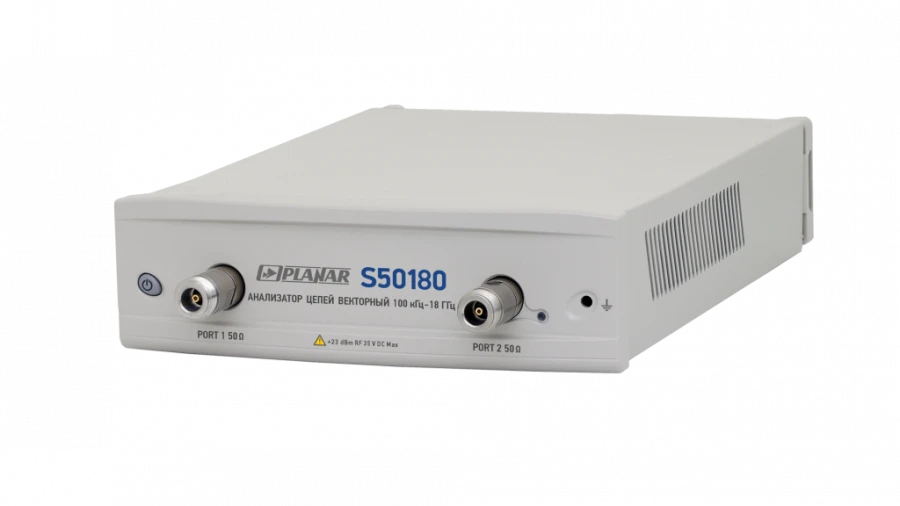

S50180 Vector circuit analysers

S50180 is a two-port vector circuit analyser with a range of operating frequencies from 100 kHz to 18 GHz and the ability to perform measurements in pulse mode. Structurally, the S50180 vector circuit analyser combines in one housing a test and heterodyne signal generator, an output power control attenuator, a switch (test signal propagation direction switch), measurement sections, a multichannel receiver, a control unit with a signal processor and a power supply. Measurement parameters S11, S21, S12, S22. A simulation mode (demo) of the software is also available for this model.
