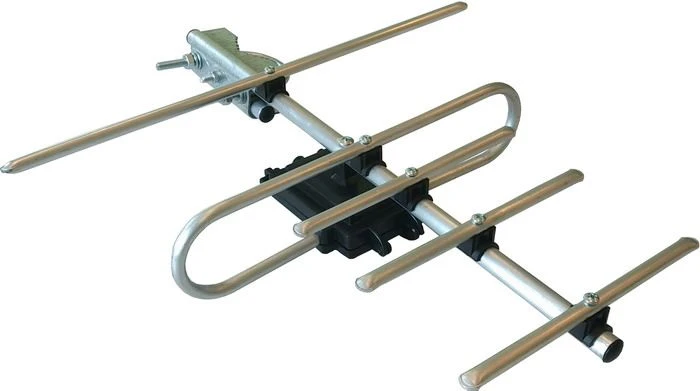

Antenna of the decimeter range (UHF) type "Wave channel" DELTA H1131A-5V

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed for receiving television programmes in the DMV range (21-60 TV channels) of digital television broadcasting on a TV set with a digital tuner DVB-T2 or through a digital set-top box DVB-T2.

The antenna is designed for operation in the temperature range from -40 to +50?? and the limit value of relative humidity of 100% at 25??.

DELTA H1131A-5V is equipped with an amplifier that provides compensation for signal attenuation in the antenna cable and improve the quality of reception of weak signals.

The +5V supply voltage is supplied to the amplifier via the antenna cable from the source built into the DVB-T2 digital set-top box. The current consumption does not exceed 35mA.

Technical Specifications

Type	outdoor
Type by orientation	Directed
View	television
Internal antenna type	outdoor
Reinforcement type	Active
Type by received frequency range	decimeter
Maximum value of the operating radio frequency range	790
Input impedance	75 ohm
Received signals	470-790
Gain factor	30
Maximum operating temperature	SBVVBG °C
Minimum operating temperature	-50 °C
Maximum wind load	15
Standing wave coefficient (VSWR)	75
Connector	F
Equipment	Antenna
Weight	0.4 kg
Power supply voltage	5 V
Mark	Delta

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
