Panel antenna 4G/5G KROKS KAA10-1700/4200 U-BOX,MIMO 4x4

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Panel Antenna KROKS KAA15-4800 U-BOX, MIMO 4x4 5G (N79)

Description

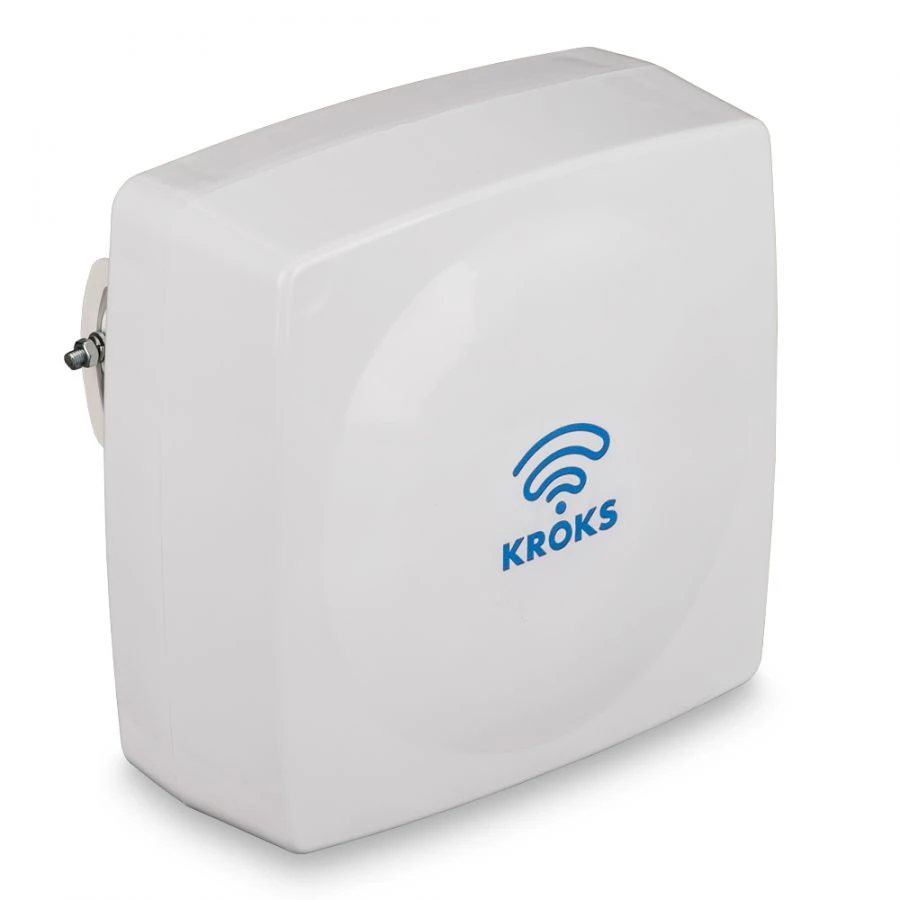

KROKS KAA10-1700/4200 U-BOX is a broadband (multi-band), directional MIMO 4x4 panel antenna with a gain of 9-11 dB.
The antenna supports LTE advanced technology and is designed to work with LTE/5G modems cat.6, cat.9, cat.12, cat.18, 5G (N78) with the ability to aggregate frequencies, as well as routers with built-in modem, operating in the frequency range of 1700-4200 MHz.
The antenna is a sealed box made of high quality ABS-plastic, resistant to ultraviolet radiation and atmospheric precipitation. The antenna inputs are short-circuited on DC between the external and internal conductors, which reduces the probability of static electricity accumulation at the input of active equipment (modem, router).
The case allows to place the whole line of our routers for germobox, routers of other manufacturers, as well as to place a PoE switch with a capacity of up to 4 ports.

Specifications

Polarization linear

Connector SMA-female

Weight 1.4 kg

Minimum value of the operating radio frequency range 1700

Maximum value of the operating radio frequency range 4200

Gain factor 9...11

Standing wave coefficient (VSWR) 1.6

Input impedance SBVVBG ohm

Maximum permissible power 10 W

Maximum wind load 108

MIMO support Armoured glass

Port-to-port isolation at least 30

Received signals 5G LTE-2600 UMTS-2100 WiFi-2400 LTE-1800

Type of execution Panel

Length 250 mm

Width 250 mm

Height 110 mm

Mark Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
