ANTENNA VGDSH

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

??????? ????-510-26/16-??1000

Description

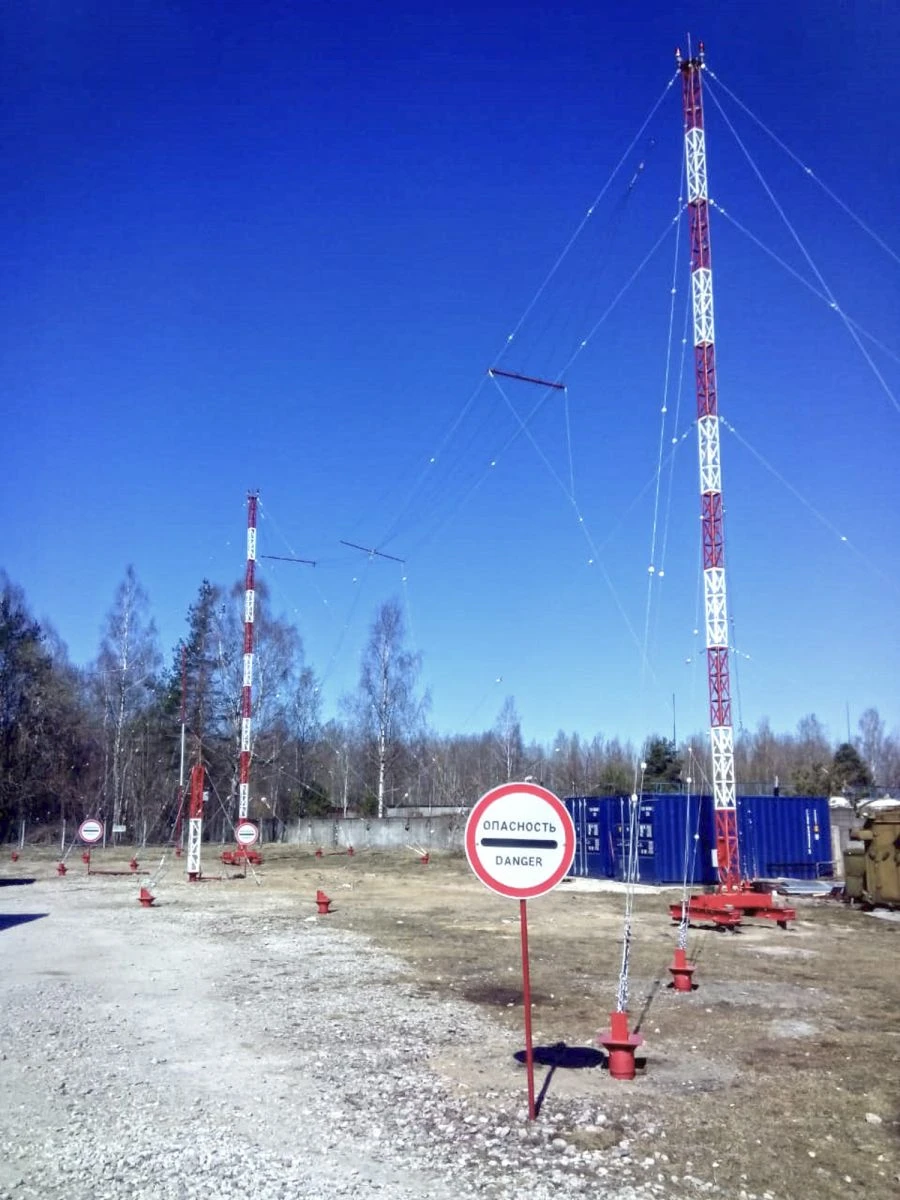

The transmitting antenna on the basis of radiators of the type vibrator horizontal range shunt (VGDSH) (hereinafter - the product or antenna), is designed to provide radio communication in the short-wave frequency range with horizontal polarisation.
The antenna is stationary and retains its parameters in rain, wind, snowfall, ice, solar radiation, changes in ambient air temperature and humidity when operating in different climatic regions according to GOST 15150-69 for placement category 1.
Polarisation of radiated waves is horizontal.
Permissible power of the radio transmitting device (RTDU): nominal - up to 1.0 kW and maximum - up to 1.2 kW.
The calculated directivity factor relative to an isotropic radiator is 3 to 9 dBi.
Estimated gain in the maximum radiation in the operating frequency range is from 2.5 to 8 dBi.
Connection to the RPDU - from the connector SR-50 cable RK-50..

Specifications

Type by orientation Directed

View External (outdoor)

Type Professional (Collective)

Internal antenna type horizontal range shunt vibrator

Reinforcement type Passive

Type by received frequency range Decameter

Maximum value of the operating radio frequency range 24

Input impedance SBVVBG ohm

Received signals HF

Maximum permissible power 1200 W

Gain factor 2.5...8

Maximum operating temperature SBVVBG °C

Minimum operating temperature SBVVBG °C

Maximum wind load 144

Standing wave coefficient (VSWR) 4

Connector CP-50

Polarization Horizontal

Power consumption 1000 W

Travelling wave coefficient 0.25 mm

Height of match 12...24 m

Design dimensions of the transmitter (Length) 17...50 m

Transmitter design dimensions (Width) 2...3 m

Mode of operation Continuous (round-the-clock)

Antenna type transceiver

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
