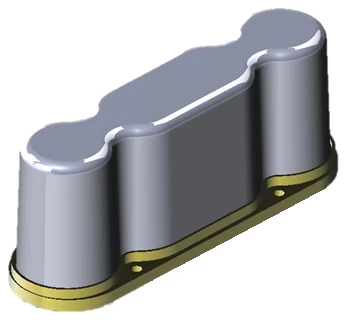

Locomotive antenna AL2/450-2700/MIMO/N CD ALVR.464651.059

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Antenna locomotive AL2/450-2700/MIMO/N CD ALVR.464651.059 is manufactured in accordance with the requirements of technical specifications ALVR.464641.050 TU, designed for operation on mobile objects of railway transport together with locomotive (transportable) radio stations for speech and/or data transmission, radio facilities of railway transport traffic safety systems and in public networks in LTE/TETRA/GSM-R/GSM900/GSM1800/UMTS/WiMAX/Wi-Fi standards. Structurally, the antenna consists of two asymmetrical vertical vibrators c active antenna GNSS (GLONASS) systems to ensure operation with radio facilities that support MIMO technology.

Technical Specifications

Equipment	Antenna, passport, packaging
Power consumption	0.12 W
Connector	Two N-type sockets for two metre and decimetre antennas and TNC-type plug for GLONASS/GPS
Operating wind speed	432
Power supply voltage	13.2 V
Weight	3.1 kg
Polarization	Vertical
Gain factor of the built-in LFM	27...29
Current consumption of the built-in MSI	0.036 A
Power supply voltage of the built-in MSHU	3.3...13.2 V
Maximum power	Constant input power W, not more (without using the built-in antenna GLONASS/GPS / / with the use of built-in antenna GLONASS / GPS) in the frequency ranges, MHz: 453,0-469,0 - 50//15; 791,0-960,0 - 50//10; 1710,0-2170,0 - 50//10; 2400,0-2700,0 - 5
Dimensions	(HxDxW) 152x340x100 mm
Degree of protection in operating position	IP66 according to GOST 14254-2015
Operating frequency range	453.0-469.0; 791.0-960.0; 1710.0-2170.0; 2400.0-2700.0 MHz
VSWR	Not more than 1,7
Operating conditions	The antenna is designed for operation on all mobile objects of railway transportation in train radio communication networks in the following conditions: - ambient temperature from minus 50 C to plus 60 C; - relative humidity 93 % at temperature plus 2
Wave impedance	SBVVBG ohm
Horizontal directional pattern	Close to circular with deviation not more than 3 dB
Antenna gain with respect to isotropic radiator, dBi, not less than	In frequency ranges, MHz: 453,7-469,0 - 7,0; 791,0-960,0 - 7,7; 1710,0-2170,0 - 7,1; 2400,0-2700,0 - 5,3

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
