Analogue input device. 8 unified current signals, individual galvanic isolation, sensor power supply (MIRage-

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Analogue input device. 8 unified voltage signals, individual galvanic isolation, sensor power supply (M

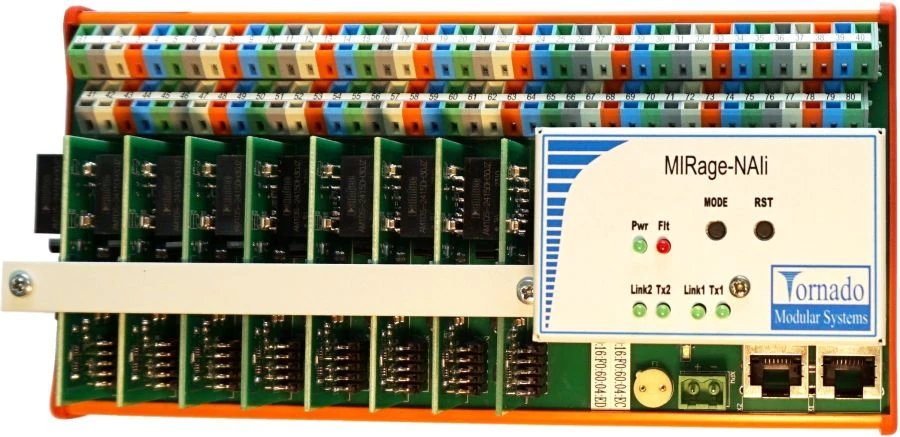

The MIRage-NAIi-S devices are designed to input analogue DC signals from sensors with passive current output (powered by the device) and convert them into digital form. The devices are designed to measure unified current values and transmit the measured values over twisted pair via a redundant Ethernet 10/100 twisted pair interface using the ModBus protocol. The MIRage-NAIi-S devices have 8 differential input measurement channels (IRs). The ICs are individually galvanically isolated from each other and from the system part. MIRage-NAIi-S devices are designed to create automated process control systems (APCS) in various industries.

Technical Specifications

Maximum current consumption	460 mA
Operating temperature range	-25...70 °C
Wago terminal block, conductor cross-section up to	2.5 mm2
Mechanical design	DIN rail mounting
Weight, not more	700 g
Overall dimensions	216x108x111 mm
Galvanic insulation	Individual
Consumption current without taking into account sensors, max.	110 mA
External supply voltage (+/- 15%)	24 V
Data exchange protocol	Modbus TCP/UDP slave
Data transfer rate	10
Request response time at 100 Mbit network speed, no more than	2
Interface type	Ethernet 10/100BaseTX - 2 channels
Number of measuring channels	8 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
