Microprocessor automatic excitation regulator of AVR-4M type 421417.033.033

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The AVR-4M microprocessor-based automatic excitation regulator is designed for use as a part of excitation systems of all types manufactured by Electrosila plant of OJSC Power Machines. The main purpose of the AVR-4M regulator is to regulate voltage at the power plant bus bars, to increase static and dynamic stability limits of synchronous machines, to improve damping of oscillations in the power system. To improve reliability, the regulator is designed to operate in a redundant system. The regulator performs monitoring and interaction with the excitation system protections. The regulator can be included in the ACS-TP in accordance with the IEC-61850 protocol. The regulator hardware is located in the 6U42HP design. Warranty period - 36 months from the date of shipment to the factory "Electrosila".

Specifications

Minimum program cycle 0.833

Structure modular

Hardware platform ST10

Software platform Keil

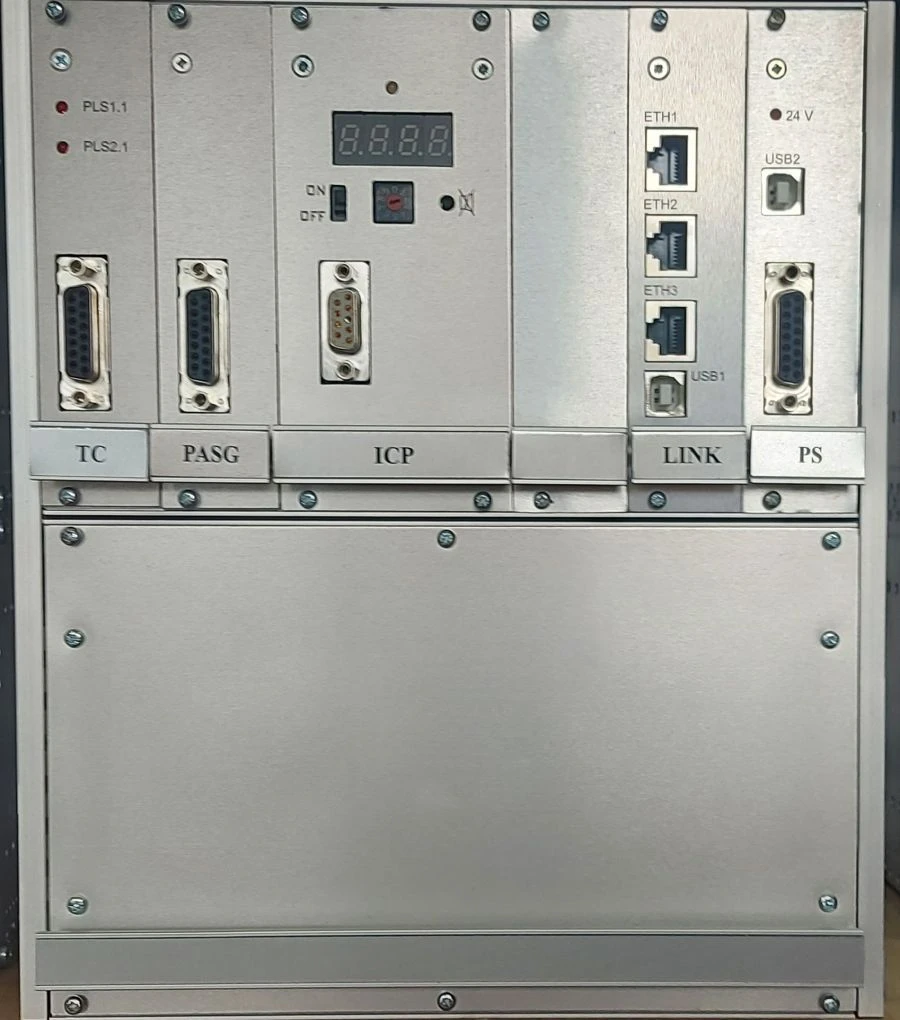

Composition Controller board, Display and control panel, Interface cell, Generator analogue signal processing cell, Power supply cell, Thyristor converter control cell

Measured frequency range 25...100

Communication speed with I/O modules 500

Number of interfaces RS-485/422/232 1 pc

Number of Ethernet ports 3 pc

Number of seats for units 5 pc

Compatible with modules DI48, DO32, AI6, AIG, AIE

Maximum switched current 0.3 A

Switching voltage range 220 V

Interface type for communication with I/O modules CAN

Number of channels 6 pc

Availability of a memory card slot no

Interface type CAN, USB/RS232, Ethernet

Power supply voltage 24 V

Minimum program cycle, ms 0.833

Type of input signals analog, discrete

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
