Photon arc protection system

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

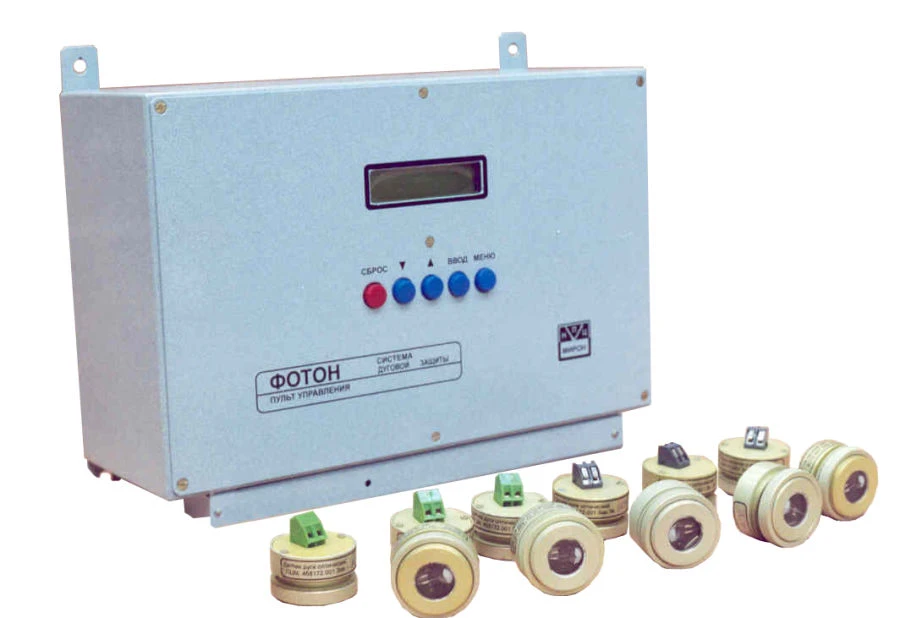

The system of arc protection "PHOTON" is designed for quick issuance of commands to disconnect switching elements of power electric circuits with voltage 3, 6 and 10 kV in case of occurrence of an open electric arc of short circuit inside switchgear cells.

Specifications

Composition Control panel, arc sensors up to 50 pcs.

Number of channels 2 pc

Power supply voltage 220 V

Angle of view of optical sensor, not less than 60

Maximum distance of the sensor from the control panel , not less than 30 m

Working distance to the transmitter 0.2...5 m

Current consumed from the remote control, not more 4 mA

Overall dimensions of the sensor, not more than Diameter 36*33mm

Control range of reaction time to input signal 0.2...5

Value of current setting values <500% In with 1%In sampling (In=5A)

Voltage at the switch actuator actuation store 400 +- 10 ?

Storage capacity 220 µF

Time of functioning at loss of operational current, not less than 4

Duration of actuators control pulse, not less than 1000

Power supply voltage =180320 V, 130...242 V, 50 Hz

Self test cycle 1...24

Overall dimensions of the control panel, not more than 300*230*110 mm

Weight , not more 5 kg

Reaction time to arc faults, not more 75

Volume of event log 65000

Number of emergency recorder records 3 records

Warranty period 3 a

Optical arc sensor, number of sensors on one line, up to SBVVBG pc

Control panel 1 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
