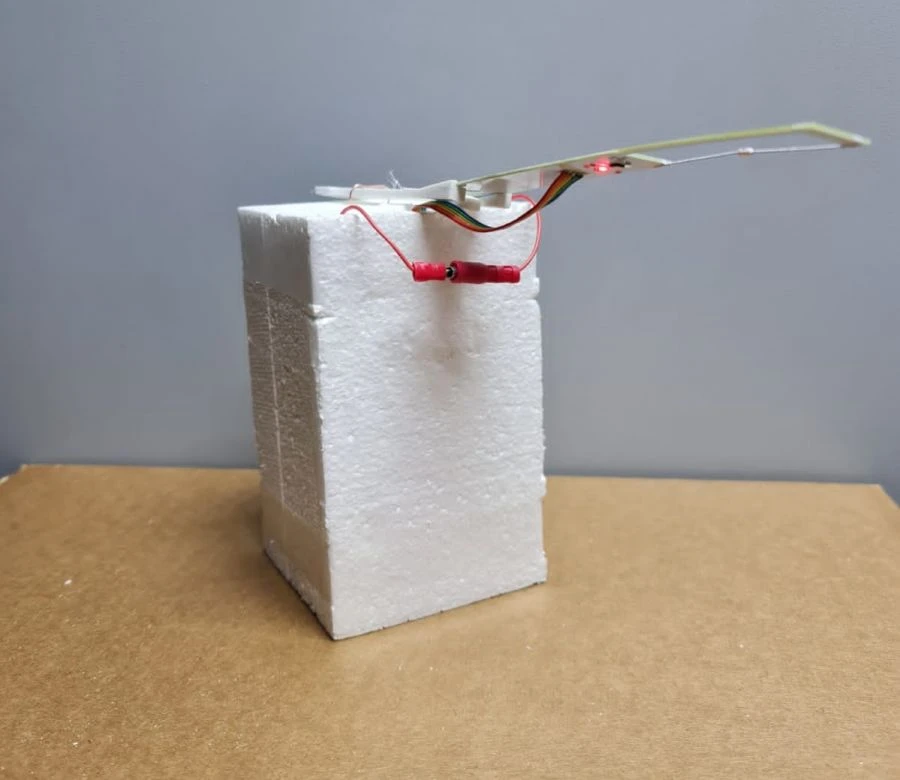

Airborne integrated sounding radiosonde AK2-02mH

Advanced Navigation Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The instrument is designed to measure various atmospheric parameters, convert the measurement information into a telemetric radio signal and transmit it for further processing to the ground tracking station

Technical Specifications

Support for global positioning systems	GLONASS and GPS
Note	the temperature sensor is coated with special anti-radiation coating - white enamel VL 548 (TU 6-10-1658-78) or an analog with optical properties
Operating conditions (relative humidity)	0...100 %
Operating conditions (atmospheric pressure)	2 to 1100 hPa
Operating conditions (ambient air temperature)	-90...50 °C
Sensitivity of the transceiver to request signals	Not more than minus 60 dB
Radiation energy flux density of the transceiver at a distance of 2.00±0.05 m in the direction at an angle of 55º from the axis	at least 1.5?10¯³ W/m²
Time to prepare the radiosonde for launch	not more than 15 min
Shelf life without battery	at least 4 years
Duration of continuous operation from the moment the battery is connected	at least 4 h
Probability of failure-free operation in 2 hours	Not less than 0.97
Work resource	at least 50 h
Weight	max. 0.27 kg
Overall dimensions (L×W×H)	not more than 140×95×95 mm
Consumption current	max. 350 mA
DC supply voltage	4.5...6.7 V
Tolerance limits of absolute error of relative humidity measurements	±5.0%
Measuring range of ambient relative humidity	0...100 %
Limits of permissible absolute error of temperature measurements	±0.6?
Ambient air temperature measurement range	-90...50 °C
Carrier frequency of radiosonde radiation	1680±8 MHz or 1680±10 MHz or 403±3 MHz

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
