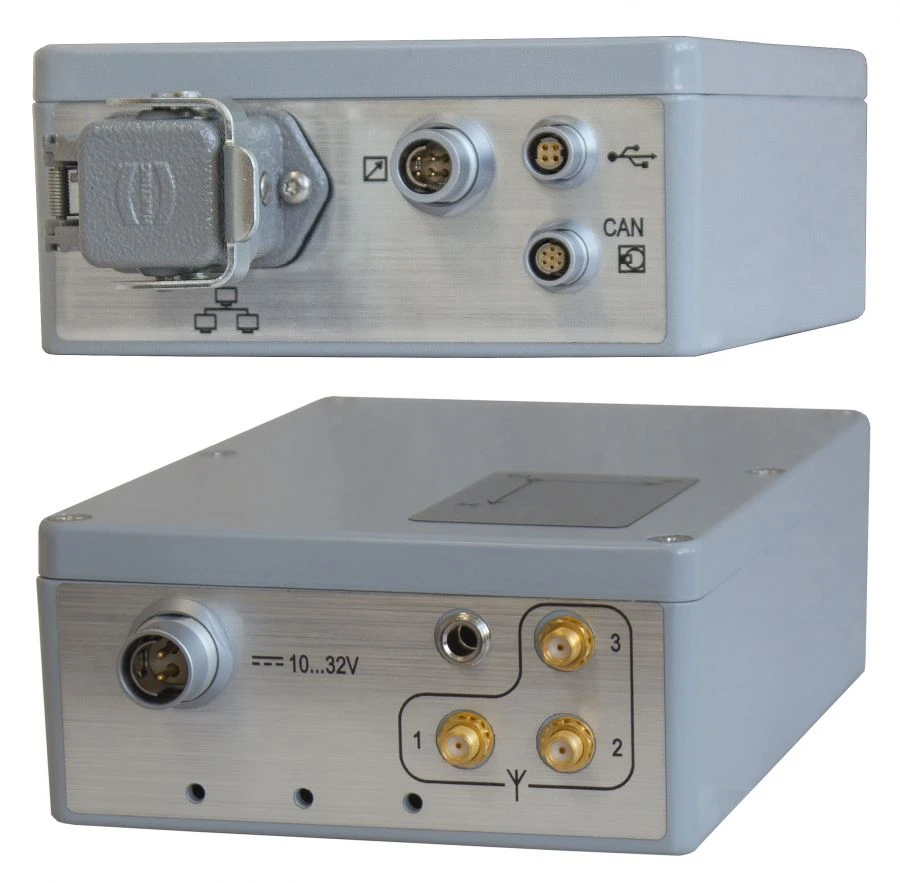

Set of navigation and synchronisation ARK-KN3

Advanced Navigation Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The product is designed to determine the location, spatial orientation and direction of motion of objects-carriers of ground, sea or air application, as well as synchronisation of the user's equipment with the Coordinated Universal Time (UTC).The product provides determination of navigation parameters (geodetic latitude, longitude and altitude), orientation angles (heading, roll, pitch), velocity vector, absolute time.To improve the accuracy and reliability of navigation data, data from GNSS and GNSS are integrated. It is possible to connect to external sensors of orientation and travelled distance (odometer, CAN-bus of the car, magnetometer, radio compass, etc.) in order to increase accuracy and reliability of navigation data in case of GNSS signal loss or substitution. The product provides the output of signs of reliability of each of the determined parameters.

Technical Specifications

Type of navigation module	Standard accuracy
Frequency of data output	100
Maximum module supply voltage	30 V
Cold start time	26
Minimum operating temperature	-40 °C
Maximum operating temperature	70 °C
Tracking sensitivity, dBm	-160
Number of tracking channels	72 pc
Number of capture channels	72 pc
Supported navigation signals	BeiDou, GLONASS, GPS / QZSS
Supported navigation signals	GLONASS
Name	Navigation and synchronisation device
Maximum power consumption	5 W
Rated supply voltage	12/24/27 ?
Accuracy of determination of orientation angles (heading, roll, pitch)	1
Accuracy of determination of orientation angles (heading, roll, pitch)	0.5
Control interfaces	Ethernet 10/100Base-TX, USB 2.0, RS-232/485
Height (maximum calibrated)	6000 m
Course	0...360
Tangent and roll.	-30...30
Acceleration	±5 g
Angular velocity	±250°/?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
