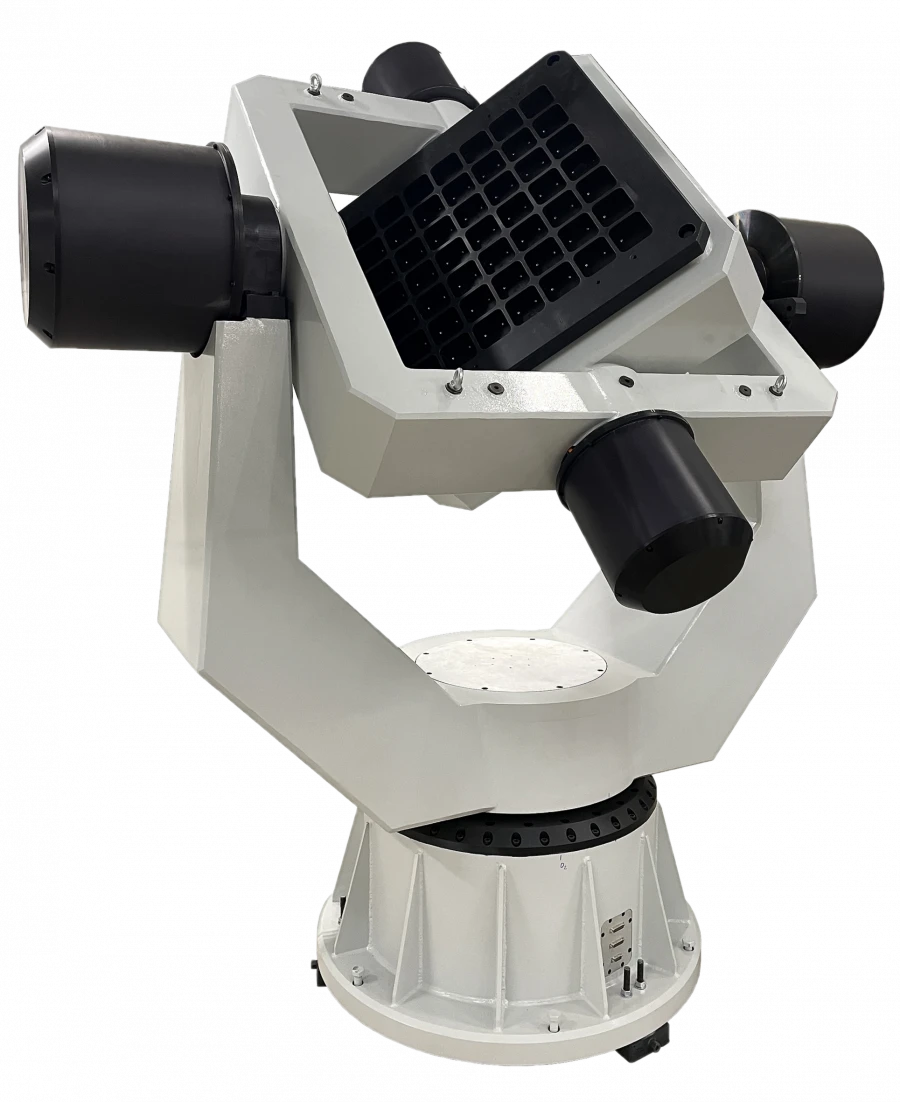

Stand STA-2.40

High-precision three-axis rotary stand is designed for calibration and testing of gyroscopic systems of different type, accuracy class and purpose with mass up to 40 kg, as well as for semi-natural modelling of their operation modes.

-For convenient installation of the object on the working surface of the stand, mechanical arreters are provided, allowing to fix the axes of the stand in any position
-To increase the stability of angular velocity, the stand is equipped with a precise balancing system.
-The stand is equipped with a dynamic braking system in case of emergency stop
-The stand is mounted on the foundation using a base plate. The bench is adjusted in the plane of the horizon with the help of special adjustable supports.
-Connection to the power supply system is carried out according to 5-wire scheme (3L+N+E).
-Power supply voltage 380 V (10%), frequency 50-60 Hz
-Maximum current consumption 60A
