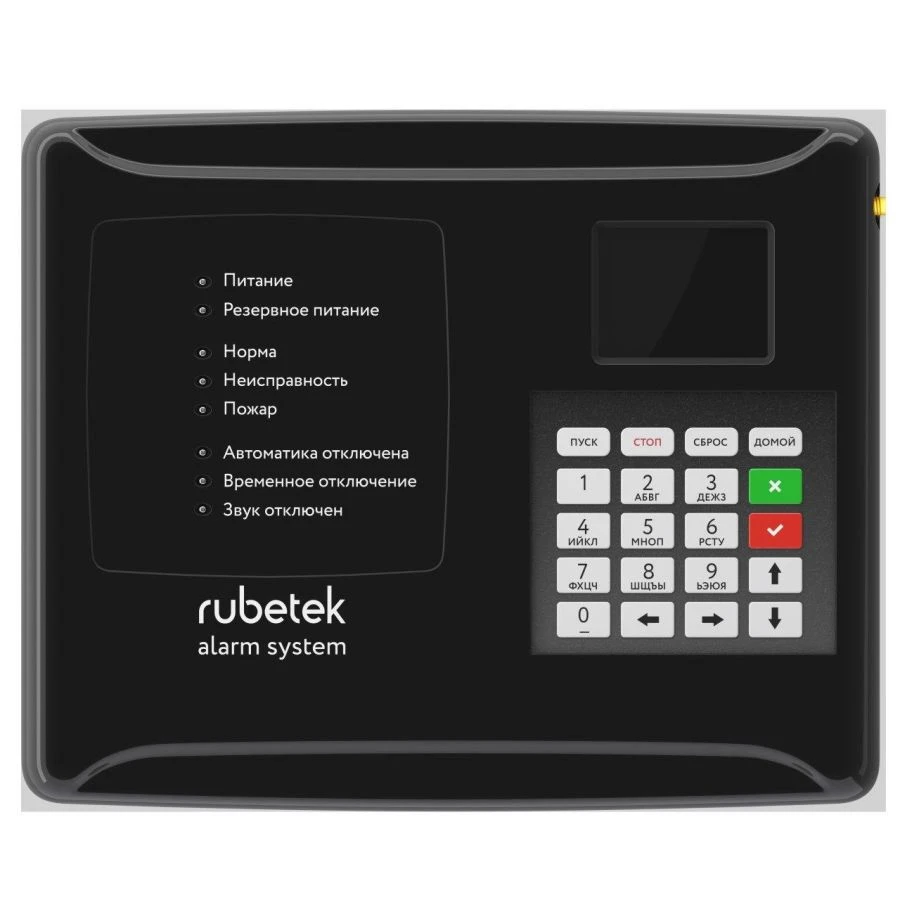

Addressable analogue combined fire alarm control and monitoring device PPK-02-250-7 "RUBETEK"

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
The devices are designed to receive, process and display signals from fire detectors and other devices interacting with the devices, control the integrity and operation of communication lines, control executive devices of automatic fire protection equipment and control the integrity and operation of communication lines between devices and executive devices.

Technical Specifications

Power supply from a DC source with voltage 24 V
Number of valves to be connected 7 pc
Own current consumption in standby mode Not more than 0.22 A
Own current consumption in "Fire" mode Not more than 0.32 A
Communication interface CAN, RF 868 MHz, RS-485, PLC, Wi-Fi
Number of occupied addresses in the CAN network 1 pc
Number of control panels in the control panel system connected via CAN interface 250 pc
Maximum length of the CAN interface, excluding repeaters 100 m
Number of RS-485 interfaces 2 pc
Maximum interface length between RS-485 segments 100 m
Number of PLC interfaces 2 pc
Maximum PLC load current per channel 0.35 A
Maximum length of the PLC interface 3000 m
Number of addressable devices connected to the control panel via PLC and RF 868 MHz interface 250 pc
Operating frequency of the radio channel interface 868
Number of channels within the frequency range 5 pc
Channel encryption XTEA 128bit
Radiation power Not more than 25 mW
Maximum communication range between CCPs and radio-channel ODRs via RF 868 MHz interface, in open terrain 900 m
Maximum switched current of the remote control valves, OPC valves 2 A
Types of valves to be connected Electromagnetic, Reversible, With return spring
Number of freely programmable inputs 2 pc
Maximum voltage at the freely programmable input 20 V
Maximum line monitoring current of a freely programmable input 0.005 A
Number of controlled dry contact outputs 2 pc
Maximum voltage at the SC output 220 V
Maximum switched current at the "Dry contact" output 2 A
Number of outputs with line open-circuit and short-circuit monitoring 2 pc
Output voltage 24 V
Maximum switched current at each output "OUT1" and "OUT2" 0.45 A
Operating frequency of the Wi-Fi interface 2400
Maximum communication range (in open terrain) SBVVBG m
Operating temperature range -10...55 °C
Relative humidity at + 40 deg. ? 0...93 %
Degree of enclosure protection IP20
Dimensions (L x W x H), mm 245 x 197 x 32
Weight 0.7 kg
Average service life 10 a
Average MTBF 60000
Probability of failure-free operation in 1000 h 0.98

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
