?2000?-????????-609-Exd-?

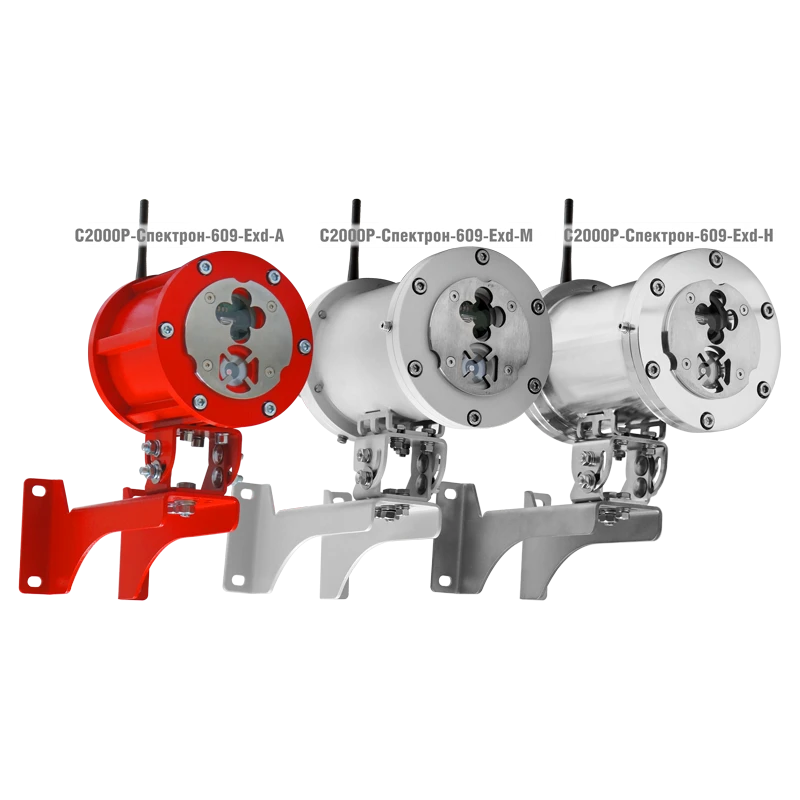

Fire flame detector multi-band (IR/UV) explosion-proof addressable radio channel. The detector is designed for operation as part of the radio channel system "S2000R" with two-way radio exchange. The detector is designed for operation in hazardous areas of classes "1", "2", "21" and "22" of premises and outdoor areas; it can be used in underground workings of mines, mines and their above-ground structures. The design of the device and the scheme of sensors arrangement allows to obtain the resulting diagram of detection of fire sources in the form of a 90° cone. The housing is stainless steel. Explosion protection marking PB Ex db I Mb / 1Ex db IIC T6 Gb/Ex tb IIIC T85°C Db
