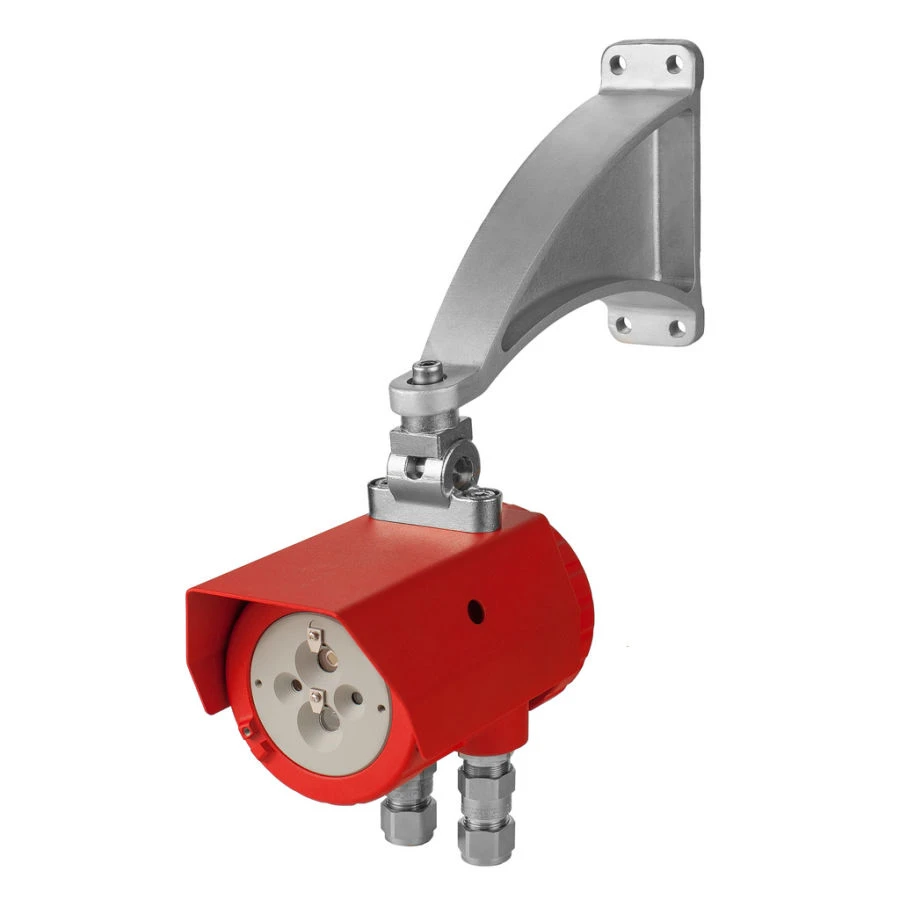

Fire flame detector Phoenix IR/UV (IP-329/330-1-1)

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Fenix IR/UV fire detector IP-329/330-1-1-1 is a detector of the 1st class and is designed to detect flame ignitions accompanied by the appearance of electromagnetic radiation in the infrared (IR) and ultraviolet (UV) spectral ranges and the issuance of warning (alarm) signalling. The detectors are addressable (having an individual assignable address identified by an addressable receiving and monitoring device). The products are used as part of automatic fire protection systems for production, refining, storage and transport of oil, oil products, natural gas and other flammable hydrocarbons, including in hazardous areas of premises and outdoor installations according to the explosion protection marking, operated in all microclimatic regions on land and at sea.

Specifications

Power supply voltage 24 V (18 to 32 V)

Sensor type Sensor type: infrared and ultraviolet

Viewing angle Flat grinder, Specialised grinder

Degree of enclosure protection IP 66/68

Housing material Aluminum alloy, stainless steel

Explosion protection marking 1Ex d IIB T4 Gb, 1Exd IIC T4 Gb

Technical features Optics heating; Control of optics contamination; Self-diagnostics; Archiving of events: recording up to 800 000 000 events; Built-in real-time clock; Special algorithm of protection against false alarms.

Output signals 4-20 mA, RS-485 Modbus RTU, dry contact relay

Power consumption Not more, without heated optics 2.0 W; with heated optics 7.8 W

Indication Colour LEDs

Electromagnetic compatibility 4 degree of rigidity

Weight Case stainless steel, not more than 3,3 kg. Bracket, not more than 1,1 kg

Sensitivity (TP-5, TP-6) 25 m

Operating temperature range -60...120 °C

Response time, max. 10

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
