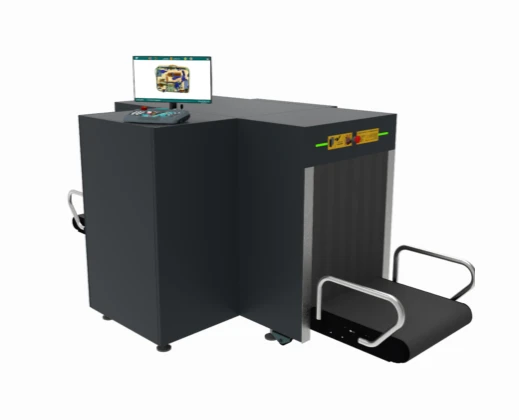

X-ray machine for cargo and hand luggage inspection "Inspector 60/70Z".

The unit has the ability to detect materials (elements) of controlled cargo (drugs,
explosives, metals).
The unit belongs to the X-ray units for baggage and goods inspection (RUDBT) of the 1st type in accordance with SanPiN 2.6.1.3488-17.
1)Visual distinction of a lead plate with dimensions not less than 10×10 mm and thickness of 1 mm behind a steel plate with thickness not less than 32 mm;
2)Limit contrast sensitivity of the installations shall ensure detection of a single copper wire with a diameter not exceeding 0.10 mm;
3)The resolution should be not less than 0,3 pairs of lines per millimetre;
4)The units shall provide detection of a group of substances by colouring them on the monitor screen;
5)The power consumption of the installation should be not more than 1.0 kV-A.
