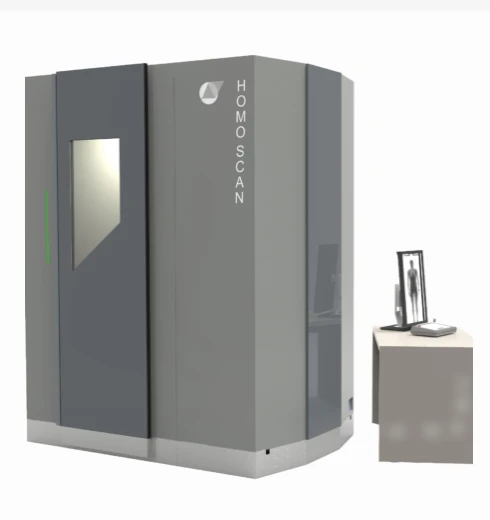

Installation of personal inspection "HOMO-SCAN"

The installation of personal inspection "HOMO-SCAN" is designed to detect dangerous objects hidden under clothing, as well as in the cavities of a person in a standing position.
1)Visual distinction of a lead plate with dimensions not less than 10×10 mm and thickness of 1 mm behind a steel plate with thickness not less than 22 mm;
2)Limit contrast sensitivity of the installations shall ensure detection of a single copper wire with a diameter not exceeding 0.15 mm;
3)The resolution shall be not less than 0.25 pairs of lines per millimetre;
4)The dose received by a person during a single scanning shall not exceed 0.3 µSv;
5)The power consumption of the installation should be no more than 2.5 kV-A.
