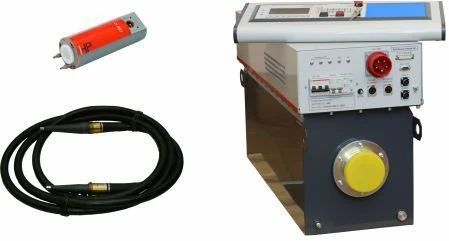

X-ray machines for industrial flaw detection unipolar series: EXTRAVOLT-225.

Radiation Inspection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The X-ray machines for industrial defectoscopy unipolar series are stationary highly stabilised cable-type machines with constant potential on the X-ray tube, designed for inspection of industrial products by X-ray defectoscopy in industrial and scientific laboratories, as well as in workshop conditions. Its use with a small focal spot size makes it optimal in X-ray television systems for inspection of products with radiation thicknesses up to about 30 mm on steel. EXTRAVOLT industrial X-ray machines and metal-ceramic tubes are the ideal choice for stable operation. The high frequency technology used in the high voltage generators has been developed to meet the stringent requirements of modern industry. EXTRAVOLT units are ideal workhorses for both X-ray film radiography and real-time X-ray television applications.

Specifications

Output voltage 5000...225000 V

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Weight 280 kg

Operating voltage 5...225 kV

Input voltage 220/380 V

Output power 4500 W

Load current 0...45 A

Type Unipolar stationary highly stabilised fixed high potential cable type apparatus

Dimensions Transmitter 279×102/124; Remote control 580×275×106; 1040×355×530 generator; cooling system 708×503×647 mm

Power consumption 8.5

Maximum output voltage 225 kV

Output voltage regulation range 5...225 kV

Maximum output current 0.05 A

Output voltage regulation step 0.1 kV

Output current control step 0.001 A

Exposure time 0.1...480

Exposure time step 0.1

Exposure delay time 0...10

Exposure delay time step 0.1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
