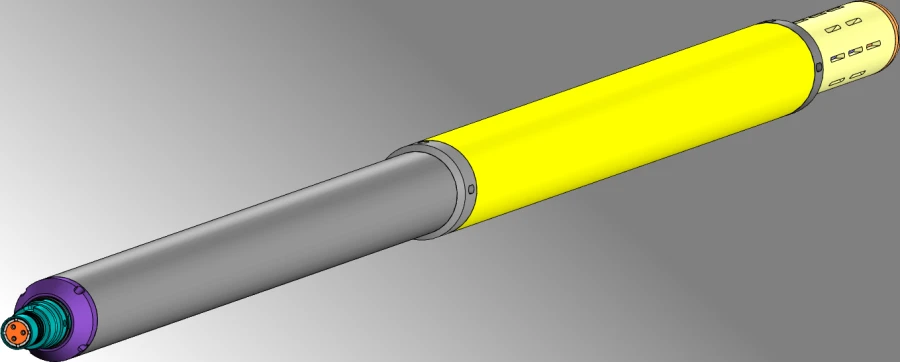

Apparatus for nuclear magnetic logging in geomagnetic field (MAG-G-115)

Geophysical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The apparatus of nuclear magnetic logging (MAG-G) is designed to measure the amount of free fluid in the open borehole of drilling wells by registering HSP of hydrogen nuclei in the geomagnetic field. The field of application of the equipment is research by the method of nuclear magnetic resonance in the open borehole of drilling wells with diameter from 140 to 180 mm at the upper values of ambient temperature 100 C and hydrostatic pressure 100 MPa with the angle of inclination of the well not more than 40, at the speed of logging up to 200 m/h.

Technical Specifications

Maximum hydrostatic pressure at temperature 100 C, MPa	100 MPa
Weight not more, kg	67 kg
Diameter, mm	115 mm
Length, mm	3200 mm
Turn-on time of the downhole instrument amplifier after polarization current switching off, not more than, ms	30
Logging speed not more than, m/h	200
Reduction of signal from drilling mud (flushing fluid), times	5...7
Discreteness of automatic change of resonance frequency of the main sensor of the downhole tool, Hz	5...7
Stability of free precession signal from porous medium model with ISF equal to 100 %, not worse than %	2...3 %
Operating frequency range of the equipment, Hz	2222...2600
Lower limit of T2 measurements, ms	SBVVBG
Basic relative error of ISF estimation in the measurement range, %	-5...5 %
ISF measurement range, %	2...100 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
