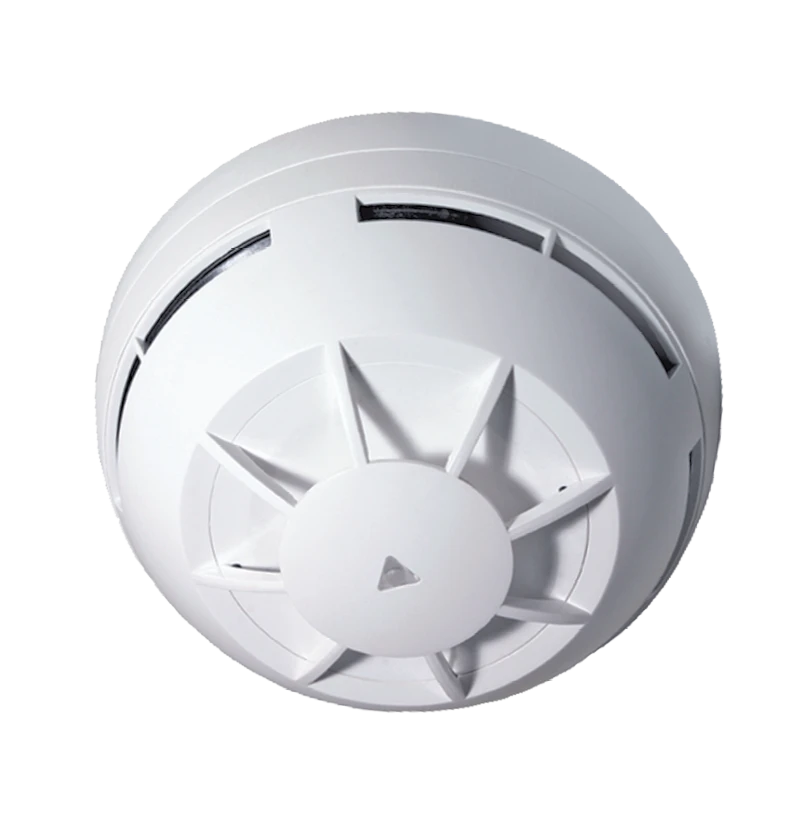

Wireless Heat Detector for Fire Alarm System - ARG-WL8-H

The fire detector thermal radio channel IP 101-155-A1R Aurora-T-PRO (IP) is designed to detect fires in enclosed spaces of various buildings and structures. ?? has a thermo-sensitive element (thermal channel) using the dependence of electrical resistance on temperature and reacts to the control panel as a maximum-differential thermal fire detector.

The type of communication line with the control panel is wireless. Operating frequency range MHz 868. Maximum radiated power mW 25.Temperature and response time on the thermal channel class according to GOST R 53325-2012 A1R.Main power supply: type CR123A, voltage V 3, capacity A.h 1,2.

Backup power supply: type CR2032, voltage V 3, capacity A.h 0,24.Explosion-proof version - availability. Degree of protection of the shell IP 23. Overall dimensions mm 111x111x 64.Weight kg 0,2.

Operating temperature range °? -30...+55.
