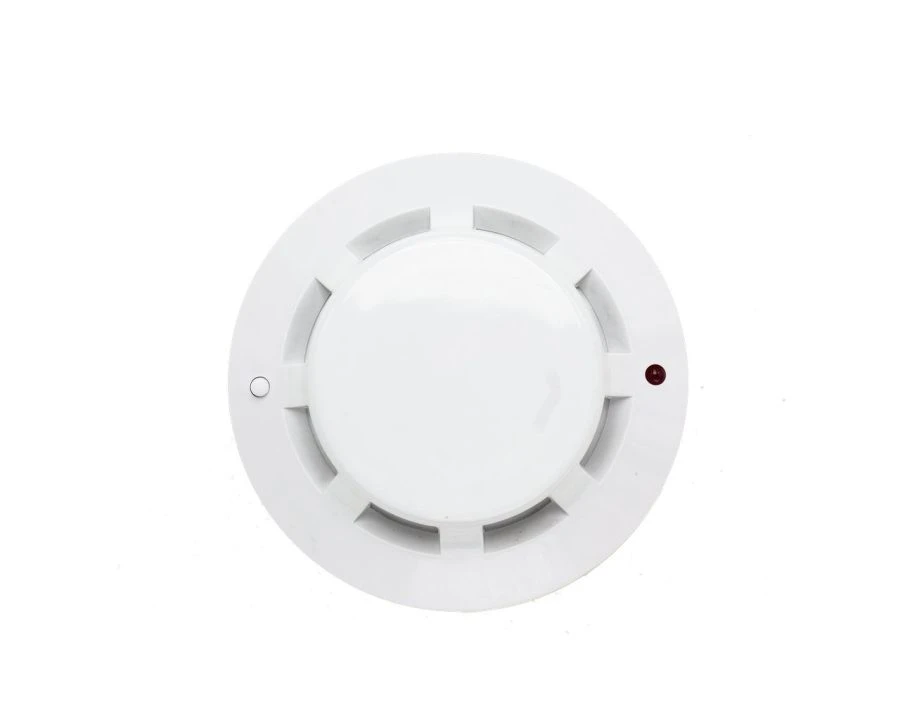

Optical Smoke Detector IP212-44 with MS-01 Model DIP-44 with MS-01

Available for Import

Optical Smoke Detector IP212-44 with MS-01 for Effective Fire Detection

Fire Alarm Detectors

Manufacturer: IVS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

??212-44 with ??-02 "???-44 with ??-02" smoke detectors opto-electronic point detectors

Description

Wire spot detector is designed to detect fires accompanied by the appearance of smoke. The design of the detector provides shielding of the optical chamber fine-mesh mesh mesh, mechanical performance control device and coordination module MS-01 to transmit to four-wire loops of fire alarm devices and expanders alarm message "Fire". The detector is equipped with the MS-01 matching module in the socket, which provides the possibility of connecting the detector to four-wire loops of fire alarm control panels. The MS-01 module uses a single-channel optorele with normally open contacts that close when the detector is triggered.

Specifications

Sensitivity of detectors corresponds to smoke environment with optical density, dB/m

0.05...0.2

Power supply voltage (from DC source)

9...15 V

Current consumed by detectors in standby mode at maximum supply voltage of 15 V, not more than

0.00015 A

Maximum permissible duration of supply voltage interruptions (polarity reversal)

0.1

Minimum repetition rate of supply voltage interruptions (polarity reversal)

Current consumed by four-wire detectors in the triggered state, max.

0.025 A

Resistance of the output circuit of the optocoupler in the closed state, not more than

100 ohm

Resistance of the output circuit of the optocoupler in open-circuit state, not less than

500000 ohm

Insulation resistance between output circuits of the opto-torque and power supply circuits, not less than

500000 ohm

Weight of detectors, not more

0.2 kg

Degree of rigidity in terms of resistance to electromagnetic interference

Protection degree of the shell against penetration of solid bodies in accordance with GOST 14254, IP

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
