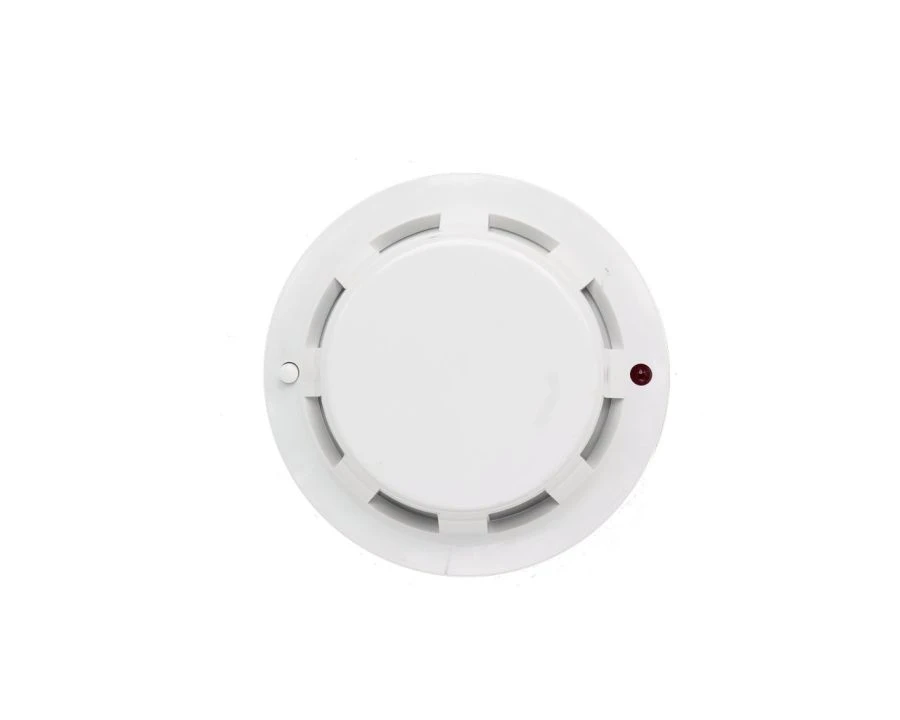

Optical-Electronic Smoke Detector IP212-54T “DIP-54T”

Available for Import

Optical-Electronic Smoke Detector IP212-54T for Reliable Fire Detection

Fire Alarm Detectors

Manufacturer: IVS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

IP212-54R1 "DIP-54R1" smoke detectors opto-electronic point smoke detectors ??212-54T-?? "DIP-54T-??" smoke detectors opto-electronic point smoke detectors IP212-54R "DIP-54R" smoke detectors opto-electronic point fire detectors

Description

Wire point detector is designed to detect fires accompanied by the appearance of smoke. The design of the detector provides shielding of the optical chamber fine-mesh mesh mesh and a mechanical device to monitor performance. The detectors are designed to detect fires accompanied by smoke and to transmit the alarm message "Fire" to the control panels. The principle of detectors operation is based on registration of optical (infrared) radiation reflected from smoke particles. The detectors are connected to the control panels using a two-wire alarm loop (hereinafter referred to as the loop). The detector IP212-54T triggering signal is formed by discrete reduction of voltage at the detector (in the loop) due to a sharp increase in current consumption and its limitation by an external device (circuit of the control panel).

Specifications

Sensitivity of the detector corresponds to the smoke environment with optical density, dB/m

0.05...0.2

Inertia of detector operation from the built-in test device, not more than

Detector supply voltage

8...36 V

Current consumed by the detector in standby mode, not more than

0.00015 A

Maximum permissible duration of supply voltage interruptions (polarity reversal)

0.1

Detector tripping voltage at 20mA current, max.

8 V

Maximum permissible current of detectors ??212-54T in the triggered state

0.05 A

Minimum permissible holding current of the triggered state

0.002 A

Duration of power supply voltage interruption (polarity reversal) to reset the triggered state

Weight, not more

0.12 kg

Protection degree of the shell against penetration of solid bodies in accordance with GOST 14254, IP

Minimum interruption repetition rate (supply voltage reversal)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
