Automated Hybrid Laser-Arc Welding System for Rotating Pipe Joint Connections

Available for Import

Automated Hybrid Laser-Arc Welding System for Efficient Pipe Joint Connections

Electric Soldering & Welding Machines

Manufacturer: UTS INTEGRATION LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

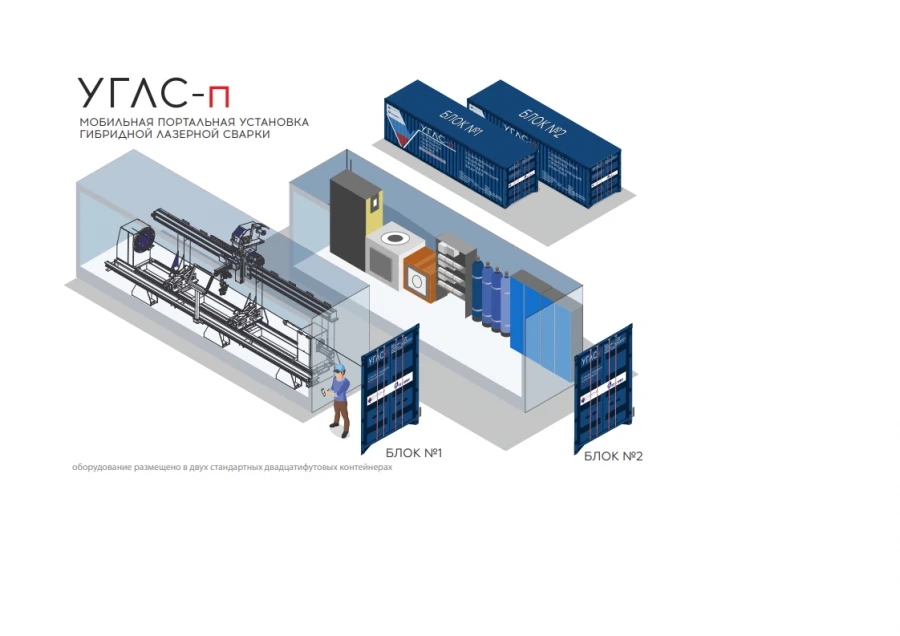

The machine for laser welding of rotary butt joints of pipes and pipe assemblies in horizontal position with the possibility to feed filler wire according to a pre-prepared programme. The application is expedient for large-scale assembly at installation and construction of oil and gas processing facilities. To implement the technological process of laser welding, the unit is equipped with ytterbium fibre laser with radiation power of 6 kW. The equipment is placed in 2 20-foot containers and is completed with chiller, compressor, ytterbium fibre laser, gantry-type coordinate unit with rotator, linear modules with motors, FLW series optical laser head, set of technological accessories, welding carriage consumables, weld tracking sensor, arc welding machine. Installed service life of the unit is not less than 3 years.

Specifications

Ambient operating humidity range

10...75 %

Ambient operating temperature range

+5 - +45 °C

Weight of head with all accessories

SBVVBG kg

Linear speed of welding head movement per minute

0,5-5 m

Travelling speed in X, Y, Z axes per minute

20 m

Accuracy of gantry positioning in three axes X, Y, Z

0,2 mm

Length of portal

6 m

Weight of machined parts subjected to rotation

500 kg

Rotator angular velocity

0,1-4,5

Pipe wall thickness

5...12 mm

Pipe diameter

57...426 mm

Type row of welded pipes, bends, tees

57x5, 89x5, 108x6, 159x6, 219x7, 325x9, 426x10 mm

Protective gas flow rate per minute

6...20 l

Welding speed per second

2...15 mm

Wire feed speed per minute

5 mm

Electric arc power

6 kW

Laser beam power

6 kW
