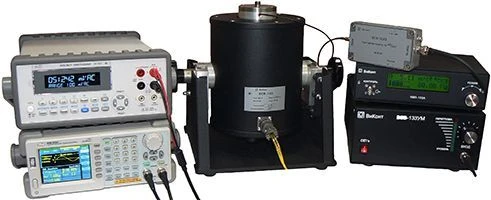

Vibration machines electrodynamic VSV-133

Designed for verification and calibration of vibration equipment in industrial conditions. Included in the State Register of Measuring Instruments No. 24122-07. Vibration installation electrodynamic VSV-133 (on request complete with laser interferometer), is produced to replace the stationary vibration test bench VSV-132, produced from 1986 to 1994.

Vertical;

Horizontal.

Load capacity of the vibration machine in the operating frequency range:

for upright position - 1.0 kg;

for horizontal - 2.5kg.

On request, it is possible to install reinforced springs to obtain a load capacity at fixed frequencies: In vertical position - 2.0 kg; In horizontal position - 3.5 kg. For this purpose the vibration machine must be installed on a concrete foundation with a volume of 1 m3. Vibration machine VSV-133 has passed the State tests.

Since vibration control equipment is used mainly on critical technological equipment, periodic confirmation of its metrological characteristics is...
