Vibration electrodynamic test rig VSV-225VD-340
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

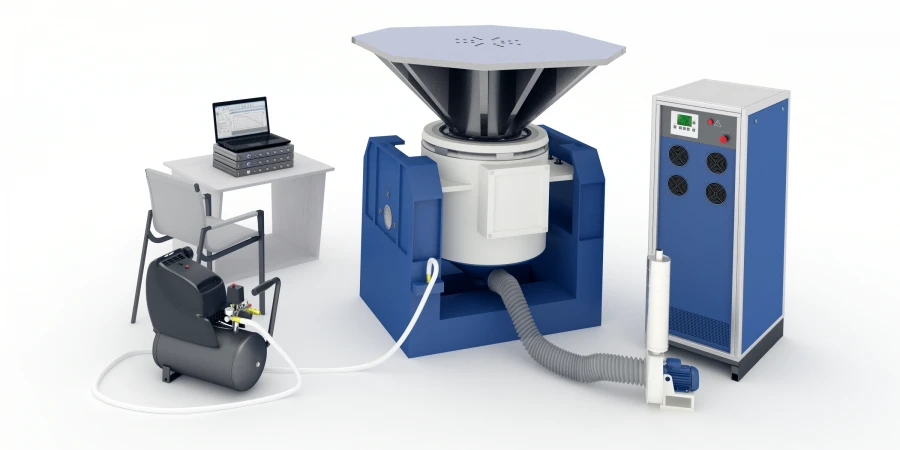

Testing vibration electrodynamic long stroke water-cooled test rig.
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features Table diameter 340 mm, frequency range 5-2500 Hz, displacement (amplitude) at zero load not less than 25 mm, acceleration (amplitude) at zero load not less than 980 m/s2, ejection force 25 kN, mass (maximum) load 300 kg.
Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features Table diameter 340 mm, frequency range 5-2500 Hz, displacement (amplitude) at zero load not less than 25 mm, acceleration (amplitude) at zero load not less than 980 m/s2, ejection force 25 kN, mass (maximum) load 300 kg.
Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
Specifications
Compulsive force (percussive classical)
50000
Forcing force (random broadband)
17500
Forcing force (sinusoidal)
25000
Maximum load
300 kg
Acceleration (amplitude)
980
Speed (amplitude)
1.8
Displacement (amplitude)
25 mm
Frequency range
5...2500
