Available for Import

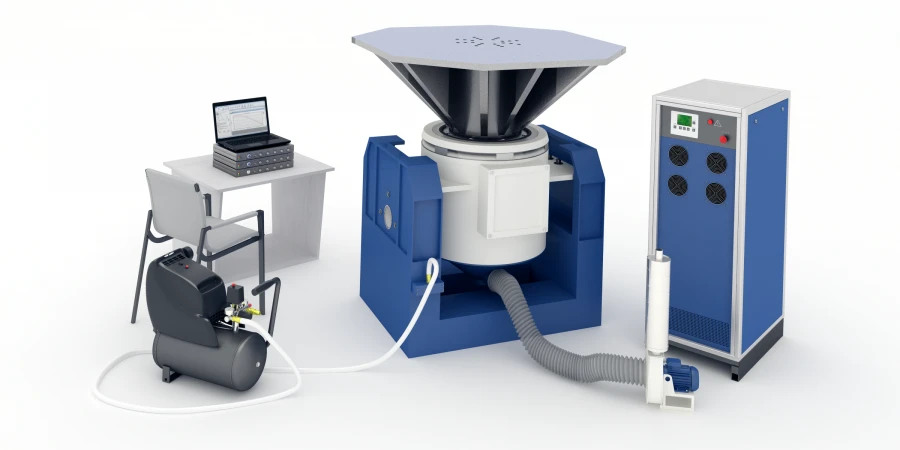

Vibration electrodynamic test rig VSV-220-340
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Electrodynamic vibration test rig
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features Table diameter 340 mm., frequency range 5-2500 Hz, displacement (amplitude) at zero load not less than 25 mm., acceleration (amplitude) at zero load not less than 780 m/s2, ejection force 20 kN., mass (maximum) load 300 kg.
Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features Table diameter 340 mm., frequency range 5-2500 Hz, displacement (amplitude) at zero load not less than 25 mm., acceleration (amplitude) at zero load not less than 780 m/s2, ejection force 20 kN., mass (maximum) load 300 kg.
Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
Specifications
Compulsive force (percussive classical)
40000
Forcing force (random broadband)
14000
Forcing force (sinusoidal)
20000
Maximum load
300 kg
Acceleration (amplitude)
780
Speed (amplitude)
1.8
Frequency range
5...2500
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
