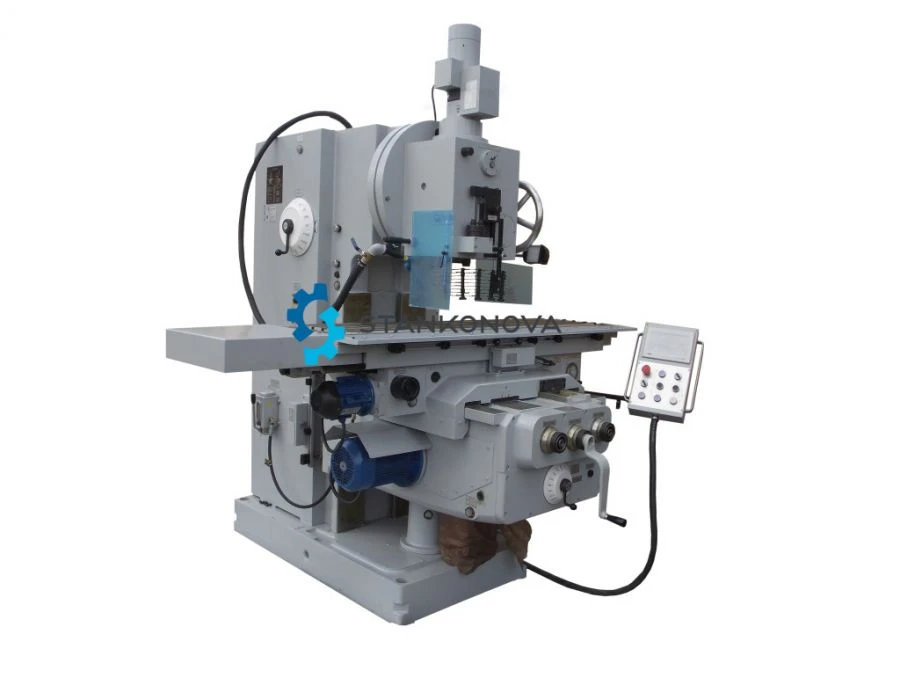

Vertical cantilever milling machine model FSV400

Metal Milling Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The FSV400 cantilever milling machine can be used for both batch and piece production. Due to its powerful design and wide speed, it can machine parts made of steel, cast iron and light metals with HSS and carbide tools.

FS series milling machines have the following qualitative differences from their analogues:

- high reliability due to the installation of a modern controller;

- The machine is controlled from the operator's touch panel, which increases the user-friendliness of the machine;

- there is a possibility of installation of linear gauges, which in interaction with the touch panel OVEN SP307-B provides the functions of the DIC with direct output of information to the touch panel operator..

Technical Specifications

Design	Cantilever milling vertical
Accuracy class	?
Power	-14.43 kW
Machine weight	4 t
Maximum spindle speed	1400
Minimum spindle speed	28
Machine length	2330 mm
Machine width	2145 mm
Machine height	2410 mm
Product machining width	400 mm
Number of speeds	18 pc
Automation level	Semi-automatic operation
Type of product according to PP RF 616	Vertical milling machines
Transverse travel of the milling head	345 mm
Longitudinal travel of the milling head	1120 mm
Milling speed	800
Length	1600 mm
Width	400 mm
Length of machined surface	1120 mm
Type	Cantilever milling vertical
Working width	345 mm
Weight	1500 kg
Height of machined surface	400 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
