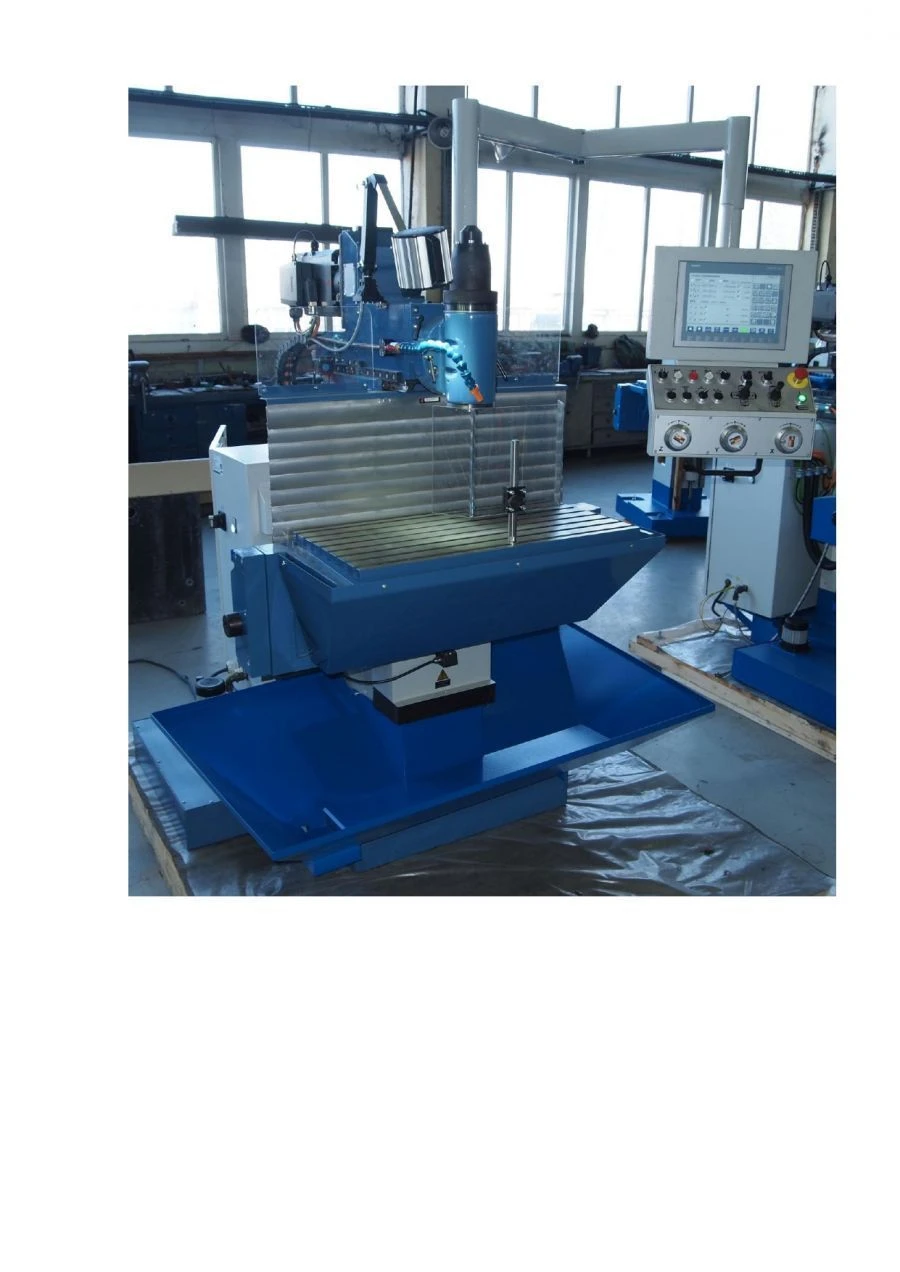

Universal Milling Machine Model FS-400-01 for Precision Metalworking

Accuracy class according to GOST 8-82 P
Dimensions of the working surface of the fixed angle table, mm 400x800
Main motion drive motor power, kW 5, 5
Horizontal spindle speed range, rpm 15-3000
Vertical spindle speed range, rpm 15-3000
Spindle cone 40AT5
Control and indication device SINAMICS CU320-2DP operator panel SIMATIC OP 177B DP of Siemens.
Feed range, mm/min 10-5000
Overall dimensions of the machine (length, width, height), mm 1345x1400x1855
Machine weight, kg 1000
