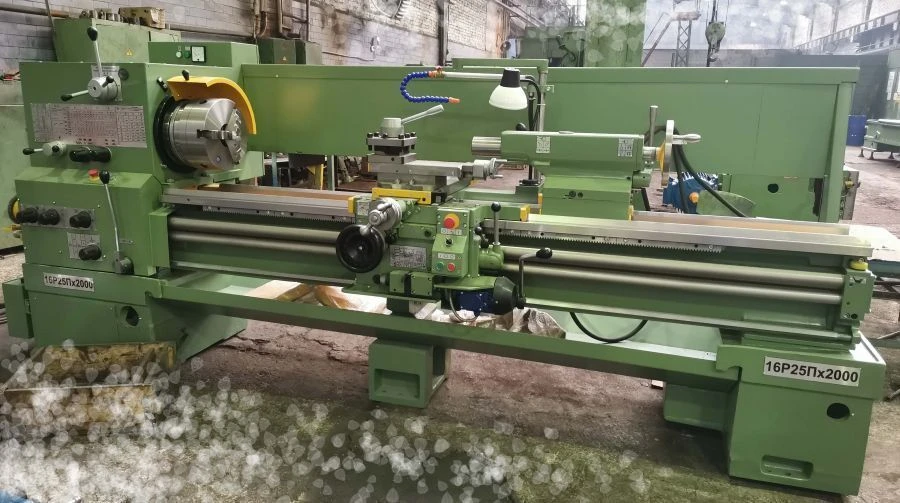

Used 16R25-1,5 turning and screw-cutting machine tool

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Screw-cutting lathe 16R25PF101-2 Screw-cutting lathe 16?25??101-1,5 Screw-cutting lathe 16?25??101-1 Screw-cutting lathe 16R25P-1,5 Screw-cutting lathe 16R25P-1

16R25-1 turning centre lathe Screw-cutting lathe 16R25P Screw-cutting lathe 16R25-2 Screw-cutting lathe 16R25P-2

Description

The machine is designed to perform a variety of turning operations, including thread cutting: metric, modular, inch and pitched threads.

Specifications

Type of product according to PP RF 616 Turning and screw-cutting machines (universal, with CNC, CNC)

Height 1500 mm

Width 1345 mm

Length 3325 mm

Largest diameter of the workpiece to be mounted and machined above the slide 250 mm

Largest diameter of the workpiece to be machined above the bed 500 mm

Largest diameter of the workpiece to be mounted above the bed 500 mm

Longest workpiece length 1500 mm

Spindle end of the spindle headstock according to GOST 12593-72 11?

Maximum longitudinal movement of the carriage 1435 mm

Maximum transverse movement of the carriage 325 mm

Maximum movement of the carriage tool slides 150 mm

Spindle speed limits 16...2000

Pitch limits of machinable threads, metric 0.5...112 mm

Step limits of machinable threads, inch threads 56-0.5 thread count per 1"

Pitch limits of machined threads, modular 0.5-112 module

Pitch limits of machinable threads, pitch 56-0.5 pitch diametral

Speed of fast longitudinal movements of the carriage 3000 mm/min

Speed of rapid transverse carriage movements 1500 mm/min

Highest torque on the spindle 1.0 kNm

Highest cutting force Pz 18500

Main motion drive motor power 11 kW

Total power of electric motors installed on the machine tool 11.69 kW

Roughness of the conical surface of the sample product Ra2.5 µm

Machine accuracy class according to GOST 8-82 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
