Universal testing machines TRM-P Tochline

Material Testing Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

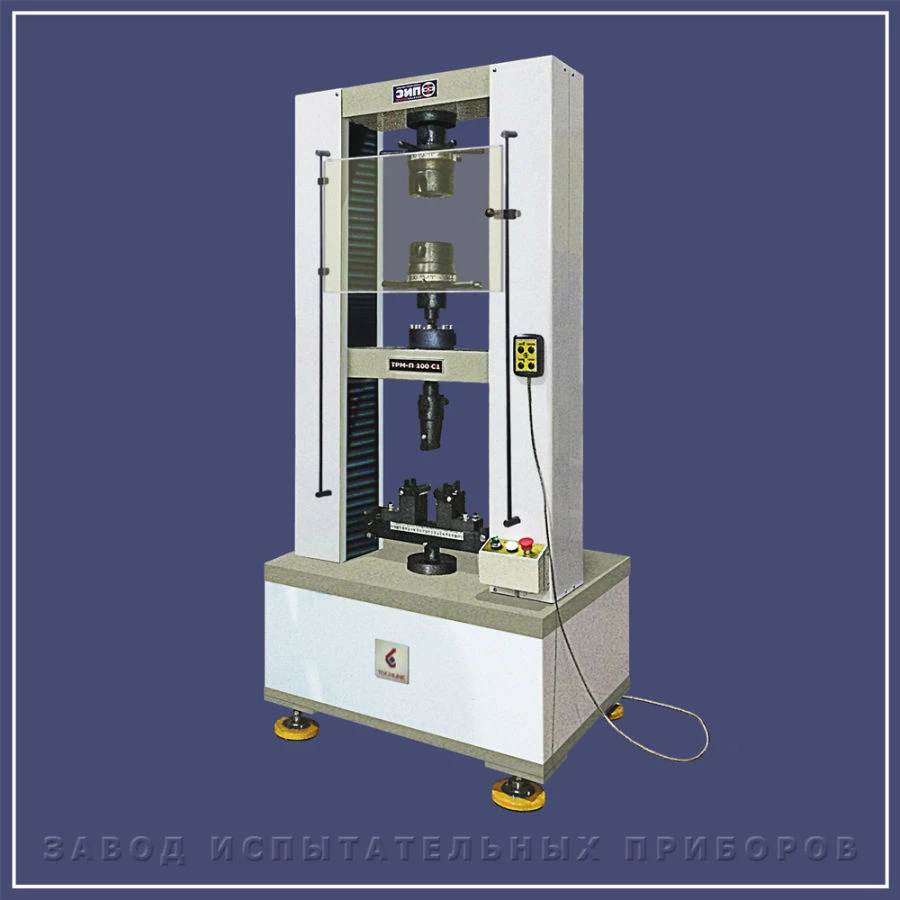

The universal testing machines TRM-P Tochline are designed for measuring the tensile or compressive force and measuring the displacements of the movable beam of the loading device during mechanical testing of specimens

Specifications

Control range of travelling crosshead speeds of machines with MPI over 300 kN, mm/min 0.05...200 mm

Control range of travelling traverse speeds of machines with MPI from 25 to 300 kN, mm/min. 0.05...500 mm

Range of speed control of travelling crosshead of machines with NPI up to 20 kN, mm/min. 0.05...1000

Measuring range of travelling beam movements of machines with MPI over 300 kN 0.02...800 mm

Measuring range of travelling traverse of machines with NPI up to 300 kN 0.02...1000 mm

Limits of permissible relative error of moving crosshead displacement measurements in the measuring range over 4 mm up to the le Plus/minus 0.5 %

Limits of permissible absolute error of moving crosshead displacement measurements in the measuring range from 0.02 to 4.00 mm i Plus/minus 0.02 mm

Tolerance limits of relative error of controlling the speed of moving crosshead movement Plus/minus 1%

Highest force measurement limits, kN 600

Design variant floor

Number of columns Two

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
