Universal testing machines TRM-C Tochline

Material Testing Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

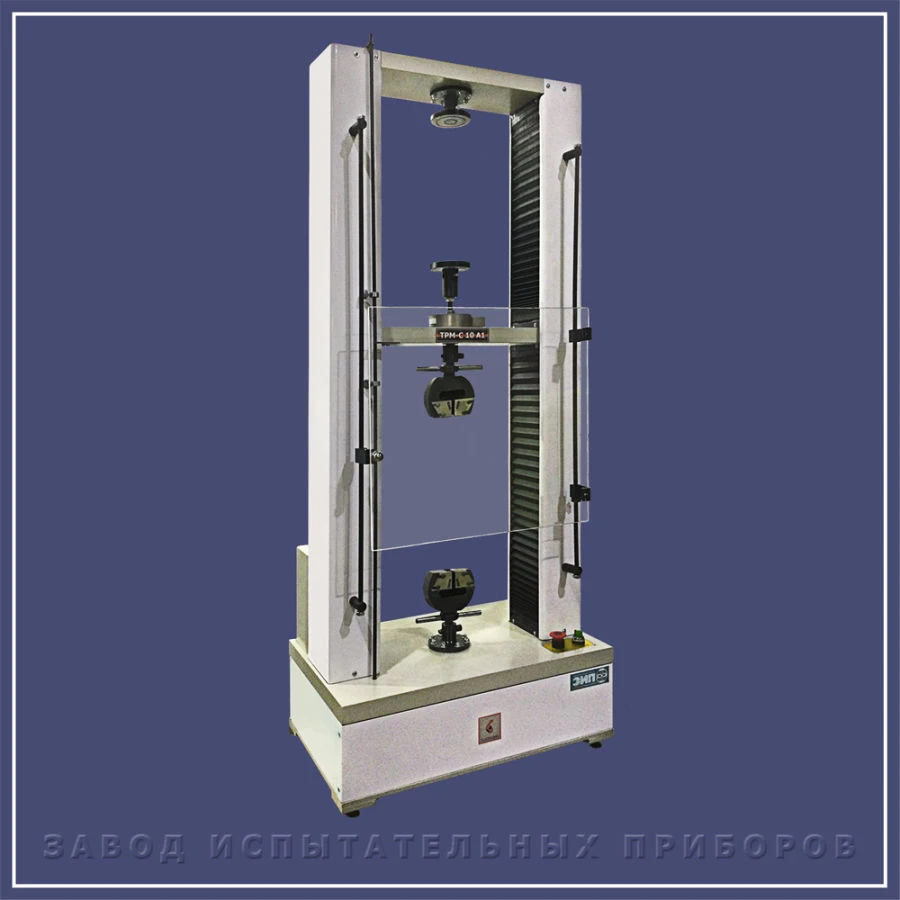

The universal testing machines TRM-S Tochline are designed for tensile or compression force measurements and measurements of the movable loading device crosshead displacements during mechanical testing of specimens

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Number of columns Two

Design variant Tabletop

Highest force measurement limits, kN 5

Measuring range of moving crosshead displacement 0.02...1100 mm

Adjustment range of moving traverse speeds, mm/min 0.05...1000

Tolerance limits of relative error of controlling the speed of moving crosshead movement Plus/minus 1%

Limits of permissible absolute error of moving crosshead displacement measurements in the measuring range from 0.02 to 4.00 mm i Plus/minus 0.02 mm

Limits of permissible relative error of moving crosshead displacement measurements in the measuring range over 4 mm up to the le Plus/minus 0.5 %

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
