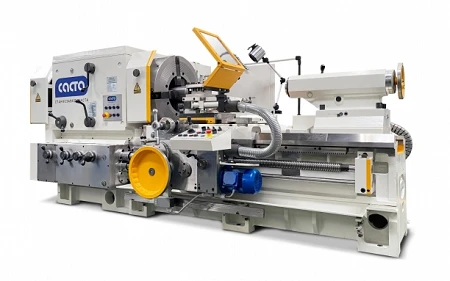

Universal pipe cutting machine CA983C020
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
- Universal pipe cutting machine CA983C020 - specialised equipment designed for processing pipe joints can also be used for all types of turning operations.
- Easy to use pipe cutting machine designed for processing long pipes and pipe joint parts with diameter up to 340 mm, used for oil and natural gas production and transportation.
- It is also suitable for all types of turning operations, including cutting metric and inch threads, including tapered threads.
- Equipped with a hydraulic mechanism for automating a single threading pass (hydro-bounce) when threading in both manual and cycle mode.
- Easy to use pipe cutting machine designed for processing long pipes and pipe joint parts with diameter up to 340 mm, used for oil and natural gas production and transportation.
- It is also suitable for all types of turning operations, including cutting metric and inch threads, including tapered threads.
- Equipped with a hydraulic mechanism for automating a single threading pass (hydro-bounce) when threading in both manual and cycle mode.
Specifications
Type of product according to PP RF 616
Turning and screw-cutting machines (universal, with CNC, CNC)
Length
4640 mm
Width
2050 mm
Height
1675 mm
Weight
10900 kg
The largest diameter of the workpiece,
to be mounted above the bed
830 mm
The largest diameter of the workpiece,
to be machined above the slide
450 mm
Maximum length of workpiece to be machined with tapered ruler
500 mm
Z-axis travel
(longitudinal movement of the slide)
2000 mm
Pitch limit of the thread to be tapped, metric
1...28 mm
Pitch limit of threads to be cut, inch
28-1 threads per inch
Spindle speed
spindle speed
8...355
Maximum spindle torque, Nm
3000
Main engine power
15 kW
Speed control
Step,
Spindle bore diameter
340 mm
Chuck diameter
Ø720 (Ø630* optional) mm
Chuck type
Mechanized
Cutter section
4 pc
Cutter section
32x32 mm
Turning mechanism
Manual
Moving the tailstock quill
240 mm
Diameter of tailstock quill
120 mm
Tailstock quill taper
Morse 6
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
