Threading lathe TV-7M

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

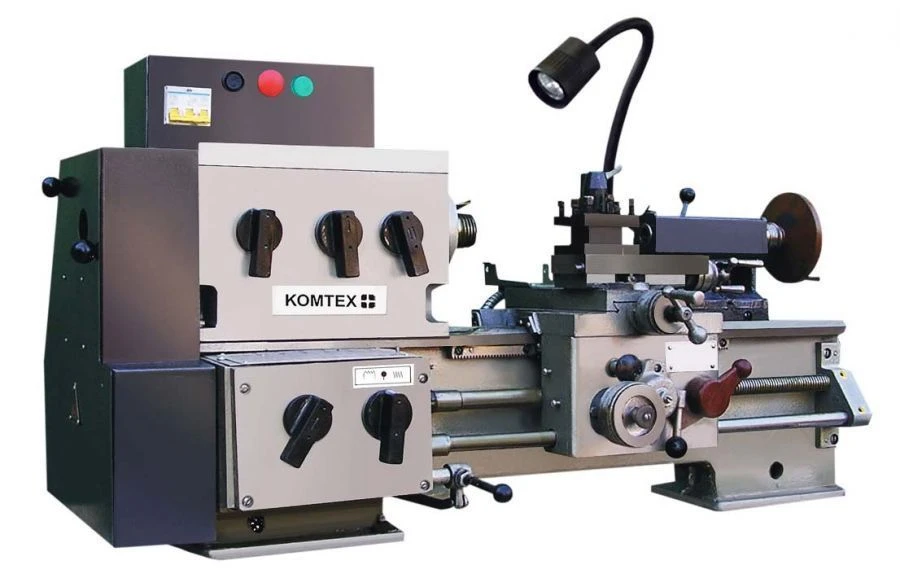

TV-7M lathe and screw-cutting machine

Technical Specifications

Type of product according to PP RF 616	Universal lathes and screw-cutting machines, with CNC, CNC)
Length	1144 mm
Width	585 mm
Height	735 mm
Maximum diameter of the workpiece to be machined above the bed	220 mm
Maximum number of tools in the machine	4 pc
Overall width	585 mm
OKP code	381160
Accuracy class according to GOST 8-82	?
Max. tool width	16 mm
Overall length/depth	1144 mm
Cone in the tailstock spindle	morse 2
Z-axis travel	20 mm
Moving in the X axis	2 mm
Max. tool height	16 mm
Maximum diameter of the bar/spindle hole in the workpiece spindle	18 mm
Max. workpiece diameter	220 mm
Overall height	735 mm
Maximum diameter of the workpiece to be machined above the slide	100 mm
Maximum workpiece weight	43590
Workpiece length (range)	275 mm
Spindle drive power	750 W
Weight	220 kg
Number of spindle speeds	6
Rear headstock quill travel	65 mm
Mounting system to the tailstock quill	manual

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
