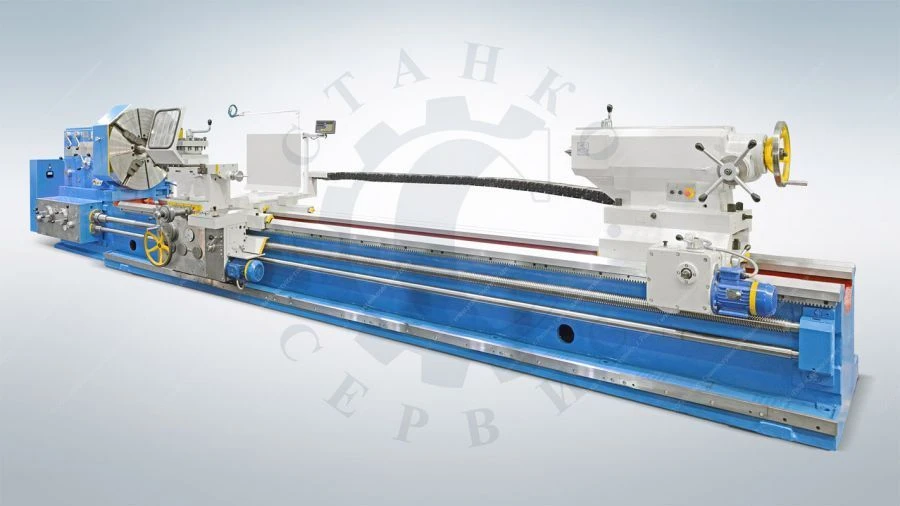

Turned screw-cutting machine tool RT817F1-16

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Turning and screw-cutting machine tool RT817F1-10 Turning and screw-cutting machine tool RT817F1-12 Turned screw-cutting machine tool RT817F1-8

Description

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Specifications

Type of product according to PP RF 616 Turning and screw-cutting machines (universal, with CNC, CNC)

Height 2100 mm

Width 2320 mm

Length 19410 mm

Longest workpiece length 16000 mm

Spindle speed limits 5...500

Largest diameter of the workpiece to be mounted above the bed 1370 mm

Digital Display Unit (DDU) Installed

Roughness of the cylindrical surface of the sample product after its finish machining Ra 2.5 µm

Accuracy class of machine tools according to GOST 8-82 ?

Machine weight 30 t

Height of the tool to be mounted SBVVBG mm

Main motion drive power 30 kW

Highest cutting force Pz 41000

Highest torque on the spindle 9.5 kNm

Speed of rapid transverse movements of the slide 1000 mm/min

Speed of rapid longitudinal movements of the caliper 3000 mm/min

Step limits for machinable modular threads 0.5-24 module

Step limits for machinable inch threads 24-1/4 threads per 1 inch

Step limits for machinable metric threads 1...96 mm

Maximum lateral movement of the slide 700 mm

Maximum longitudinal movement of the slide 15600

Diameter of the cylindrical bore in the spindle 128 mm

Largest diameter of the workpiece to be machined above the bed 1140 mm

Largest diameter of the workpiece to be mounted and machined above the slide 1100 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
