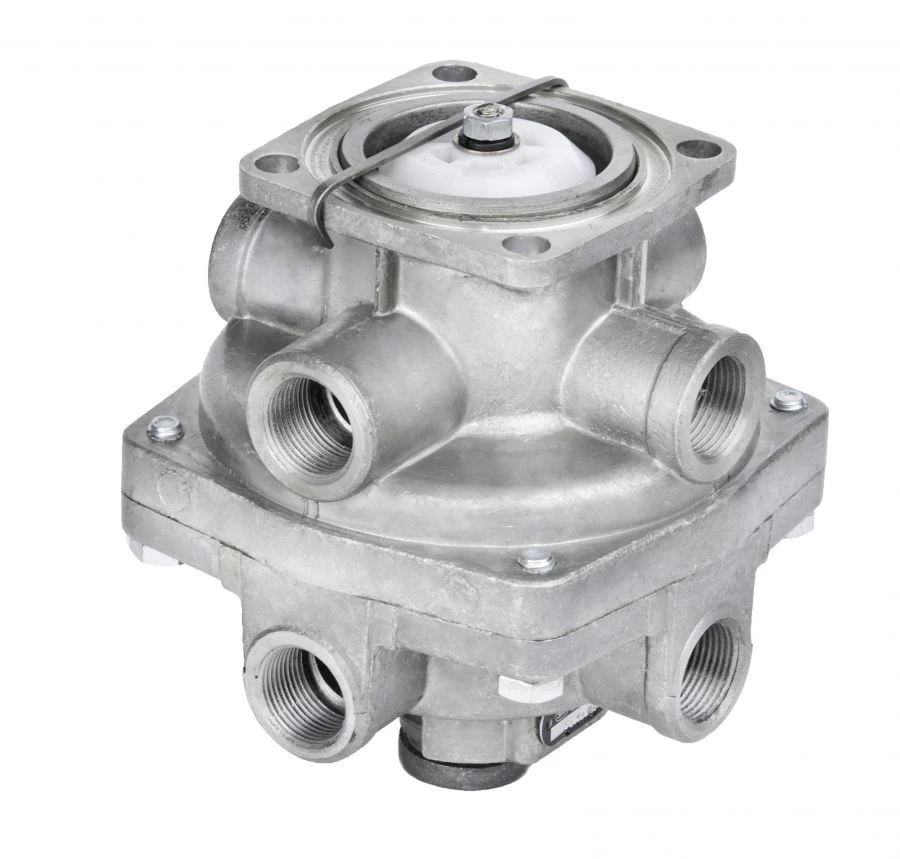

Two-section brake crane 100-3514010-10

Pneumatic Brake Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Brake two-section sub-pedal valve is designed for controlling actuators of the working drive of the vehicle with two-circuit brake drive, as well as for controlling valves of the trailer brake drive. Without a base plate and lever, the drive is carried out with the help of a pusher (not included in the set), the presence of an exhaust window for the installation of a silencer.

Technical Specifications

Equipment	Two-section brake crane - 1 pc. Transport plug - 8 pcs. Passport - 1 pc. Packing - 1 pc.
Assignment	The two-section sub-pedal brake valve is designed for controlling the actuators of the working brake of the vehicle in case of two-circuit brake drive, as well as for controlling the trailer brake drive valves.
Certificate of Conformity	NO. EAES RU C-RU.MT14.V.00126/19
Operating medium	Compressed air, oil and water vapors may be present.
Environment	Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.
Maintenance of the machine	In accordance with the operating manual of the motor vehicle for which it is intended
Installation of the apparatus	In accordance with the vehicle manufacturer's documentation
Working pressure	0.8 MPa
Max. cross-sectional area	B1/B8 2100/900 MHz mm
Free travel of the push rod until the upper section of the brake valve is pressurized	1.9...3 mm
Pusher stroke to full opening	8.4...10.8 mm
Total stroke of the pusher up to the stop	12.5...15.7 mm
Connection thread size	22 mm
Diameter of the connection hole in the arm	B1/B8 2100/900 MHz mm
Thickness of the arm connection part	11...11.9 mm
Temperature range	-46...80 °C
Weight	2.92 kg
Storage conditions	The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer
Manufacturer's warranty	The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.
Disposal information	The procedure for disposal of the product shall be determined by the Consumer.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
