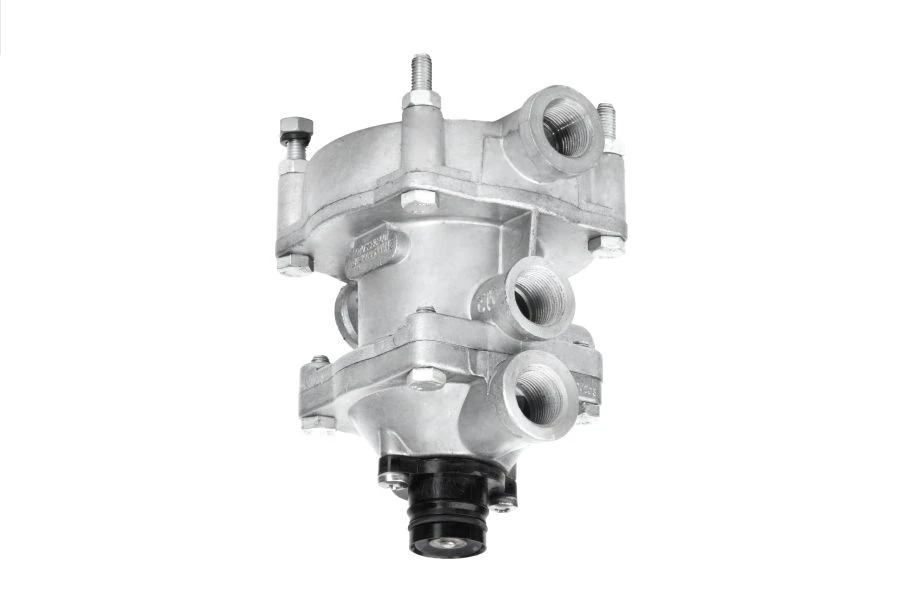

Trailer brake control valve with two-wire actuator 100-3522010-11

Pneumatic Brake Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Trailer brake control valve with two-wire actuator is designed for controlling two-wire actuator of trailer brakes in case of separate actuation of tractor working brakes and presence of reverse acting brakes in the form of cylinders with spring energy accumulators. In the supply lead 1 and lead 2 to the brake line of the trailer is installed a protective mesh, preventing the ingress of foreign bodies, etc. from the pneumatic system of the motor vehicle into the internal cavities of the device.

Specifications

Equipment Trailer brake control valve - 1 pc. Transport plug - 5 pcs. Passport - 1 piece (when products are delivered in batches - in each transportation package (box, crate, etc.)). Packaging - 1 pc.

Pressure at pin 2 when pin 41 is pressurized with 0.2 MPa (advance) 0.25...0.27 MPa

Connection thread size 22 mm

Disposal information The procedure for disposal of the product shall be determined by the Consumer.

Manufacturer's warranty The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Storage conditions The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Weight 1.61 kg

Temperature range -46...80 °C

Working pressure 0.8 MPa

Installation of the apparatus In accordance with the vehicle manufacturer's documentation

Maintenance of the machine In accordance with the operating manual of the motor vehicle for which it is intended

Environment Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.

Operating medium Compressed air, oil and water vapors may be present.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
