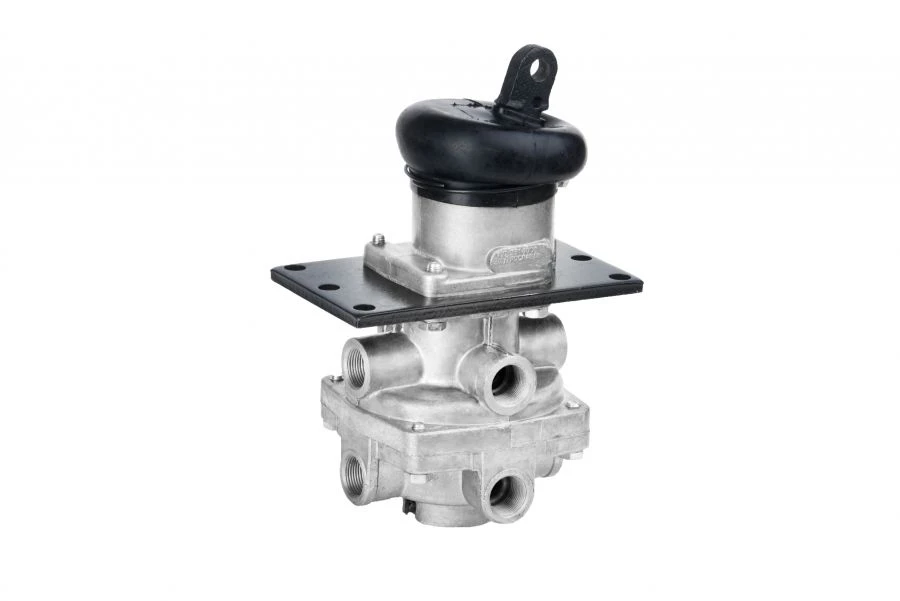

Double section brake tap with lever 100-3514008-10

Pneumatic Brake Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Brake valve two-section with lever is designed to control the actuators of the working drive of the vehicle with two-circuit brake drive, as well as to control the trailer brake drive valves. It differs from 100-3514008 by the presence of an outlet window for installation of a silencer.

Specifications

Equipment Two-section brake crane with lever - 1 pc. Transport plug - 8 pcs. Passport - 1 pc. Packing- 1 pc.

Assignment Two-section brake valve with lever is designed for controlling actuators of the vehicle working drive in case of two-circuit brake drive, as well as for controlling trailer brake drive valves.

Certificate of Conformity NO. EAES RU C-RU.MT14.V.00126/19

Operating medium Compressed air, oil and water vapors may be present.

Environment Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.

Maintenance of the machine In accordance with the operating manual of the motor vehicle for which it is intended

Installation of the apparatus In accordance with the vehicle manufacturer's documentation

Working pressure 0.8 MPa

Max. cross-sectional area B1/B8 2100/900 MHz mm

Free movement of the lever until the upper section of the brake valve is pressurized 4.7...7.4 mm

Lever travel to full opening 21...27 mm

Total lever travel to the stop 31.1...39.1 mm

Connection thread size 22 mm

Diameter of the connection hole in the arm B1/B8 2100/900 MHz mm

Thickness of the arm connection part 11...11.9 mm

Temperature range -46...80 °C

Weight 3.6 kg

Storage conditions The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Manufacturer's warranty The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Disposal information The procedure for disposal of the product shall be determined by the Consumer.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
