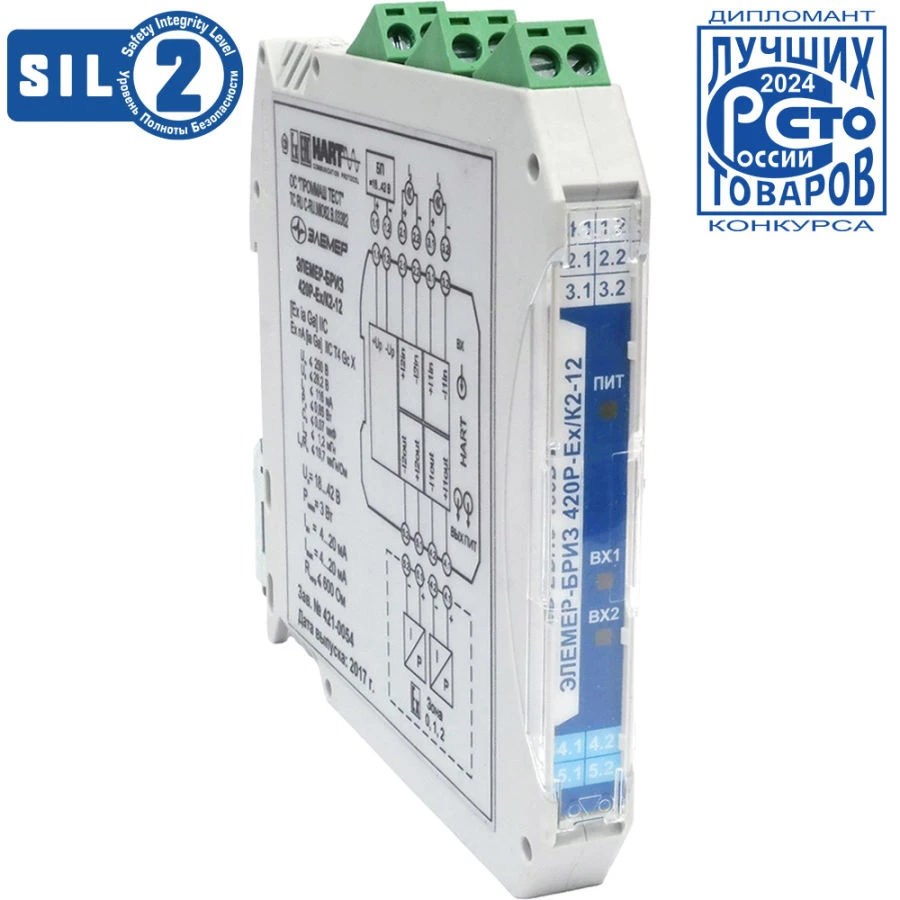

Transducers measuring (intrinsic protection barriers) "ELEMER-BRIZ 420R-Ex".

Digital Signal Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Barriers of intrinsic protection of ELEMER-BRIZ series are designed for installation in control cabinets. The devices provide explosion protection of [Ex ia Ga] IIC and 2Ex nA [ia Ga] IIC T4 Gc X type and successfully replace imported analogues in control systems of oil and gas transport facilities, storage facilities, chemical industry, oil and gas processing plants and other enterprises where instrumentation is operated in hazardous areas. The main advantages of application of the ELEMER-BRIZ series spark protection barriers: space saving in control cabinets - housing 12,5 mm or 17,5 mm; galvanic isolation of channels from each other and from power supply circuits; high noise immunity (EMC) - III-A; wide range of supply voltage - =18...42 V; variant of housing design - =18.......42 V; housing version with a common power bus (option) for convenient placement in control cabinets; UPB2 (SIL2) for single-channel versions of barriers; ELEMER-BRIZ 420P-Ex are designed to transmit a current signal 4 ... 20 mA (+HART) from a safe area to a hazardous area.

Technical Specifications

Electromagnetic compatibility (GOST 32137-2013)	III-A
Housing width	12.5 mm
Galvanic isolation of channels from each other and from power supply circuits	Armoured glass
Power supply voltage	18...42 V
Design variant with common power supply bus	Armoured glass
UPB 2 (SIL2)	Yes (for single channel versions)
Inspection interval	Up to 5 years
Climatic version	-20...70 °C
Input signal type	4...20 mA (+HART)
Output signal type	4...20 mA (+HART)
Providing power for the sensors to be connected	18...36 V
Two-way HART signal transmission	Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
