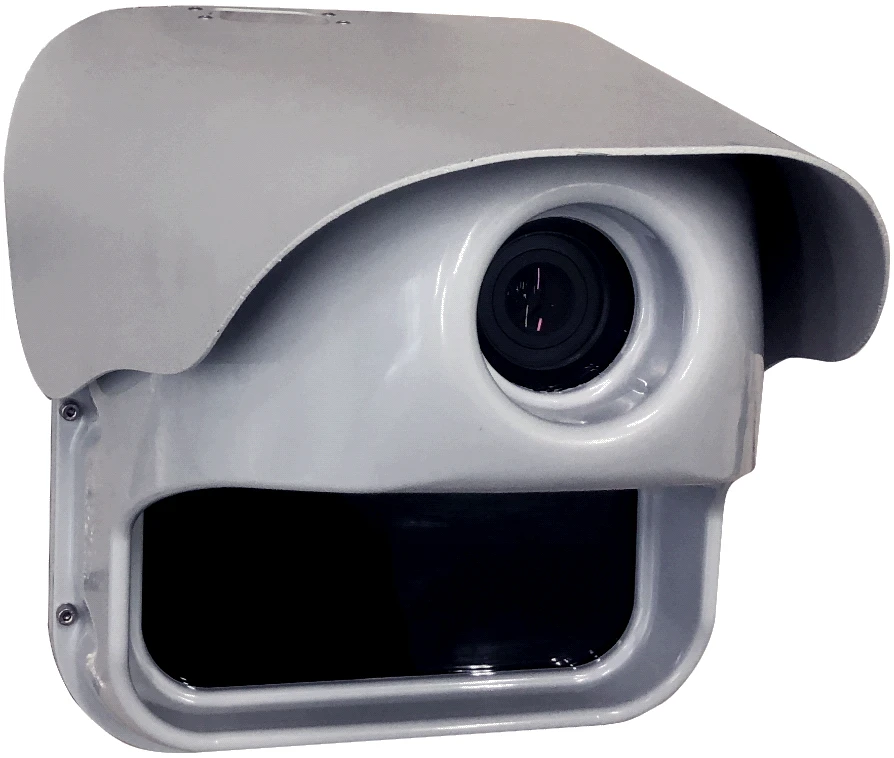

Hardware-software complex "Vokord-Trafic M".

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The complex hardware-software "Vokord Traffic M" is designed for remote measurement of vehicle speed, fixation and recognition of vehicle registration plates, as well as fixation of traffic violations on linear sections and intersections of the road traffic system.

The AIC operates in fully automatic mode and provides the following functions:
- measuring the location, trajectory and speed of vehicles within the AIC control zone;
- fixation and recognition of vehicle registration plates;
- photo-video fixation of traffic violations;
- real-time verification of fixed vehicles against search databases;
- classification of vehicles by the following types: passenger car, lorry, bus, minibus, motorbike, road train;
- collection of road traffic statistics (number of vehicles travelled, average speed of vehicles, etc.);
- transfer of data on all recorded vehicles to the Data Centre;
- formation of a single database of all recorded vehicles;
- transfer of data to the CAFAP for issuance of resolutions on imposition of administrative fines for traffic offences.

Main functions...

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Measuring range of vehicle speed 0...350

Limits of permissible error of measurements of vehicle speed 1

Operating frequency of radiation 24

Measuring range of distance from the complex to the vehicle 1...100 m

Number of strips controlled by one monoblock, not more 5 pc

Limits of permissible absolute error of measuring the distance from the complex to the vehicle 1 m

Limits of permissible absolute error of synchronization of the internal time scale of complexes with the national time scale UTC 1

Limits of permissible absolute instrumental error (at confidence probability 0.95) of determining the coordinates of the place o 4 m

Parameters of monitoring zone length 4...100 m

Overall dimensions of "Vokord Traffic M" monoblock, not more 305...295 mm

Weight of "Vokord Traffic M" monoblock, not more 7 kg

Operating ambient temperature range 60 °C

Relative humidity (at 25ºC) 95 %

Atmospheric pressure 60

Power supply voltage of "Vocord Traffic M" monoblock from AC network with frequency 50 Hz 24 V

Power supply voltage of "Vokord Traffic M" monoblock from DC network 10 V

Power consumption of "Vokord Traffic M" monoblock, not more 45

Average MTBF, not less than 35000

Average service life, at least 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
