Measuring complex with video fixation "Kordon.Pro "V

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

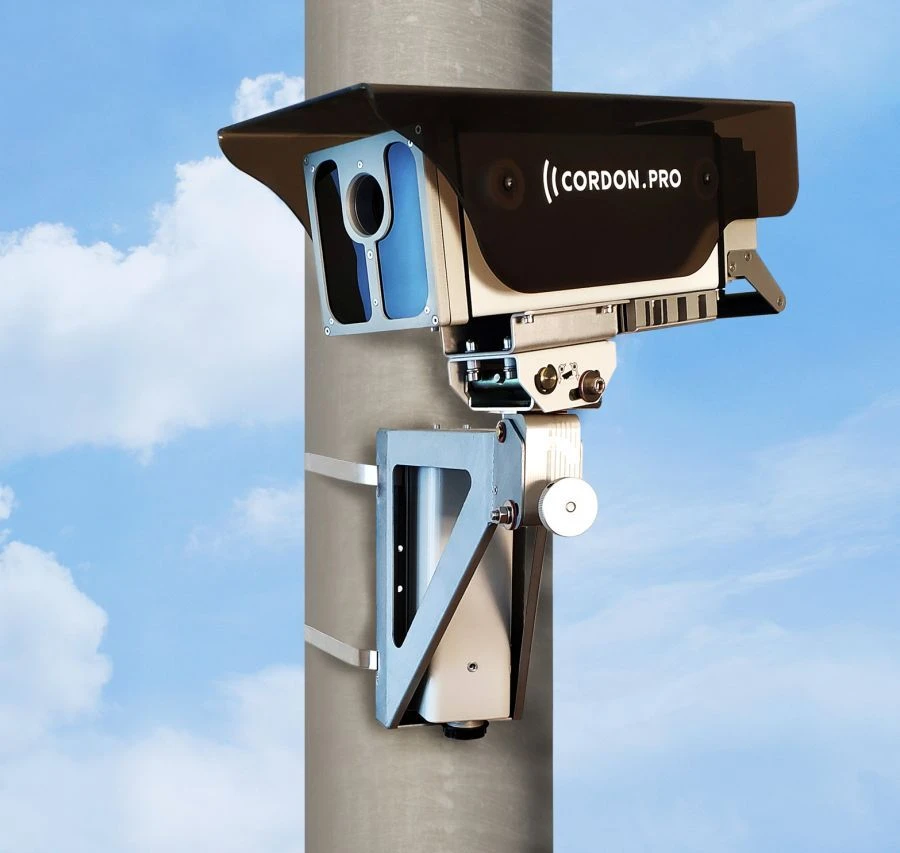

The measuring complexes with video fixation "Kordon.Pro "V and "Kordon.Pro "V+ (hereinafter - "complexes") carry out automatic measurement of current time values with simultaneous photo fixation and saving of the received information. The main purpose of the complexes is to control and detect violations of traffic rules in terms of violations of requirements to the placement of vehicles in lanes and restrictions on the presence of vehicles in designated areas, as well as control of compliance with traffic rules at regulated and unregulated intersections. The complexes operate in fully automatic mode, controlling the movement of vehicles on all lanes in the controlled zone. The complexes contain modules for receiving navigation signals, with the help of which the device time is bound to the UTC(SU) scale. The complexes provide round-the-clock automatic recognition of state registration marks and identification of vehicles by them.

Technical Specifications

Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Limits of permissible absolute error of synchronization of the complex time scale with the national coordinated time scale	5
Tolerance limits of absolute error of assigning a time stamp to a video frame	1
Limits of permissible absolute error of measurements of the angle between the axis of the complex and the direction to the TS	± 2°
Measurement range of the angle between the complex axis and the direction to the TC	"cordon.pro "in -7;5 to +7;5°
50 Hz AC power supply voltage	90...300 V
DC supply voltage	10...15 V
Overall dimensions of the main unit, not more than	460x180x200 mm
Weight of the main unit, not more	5.7 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
