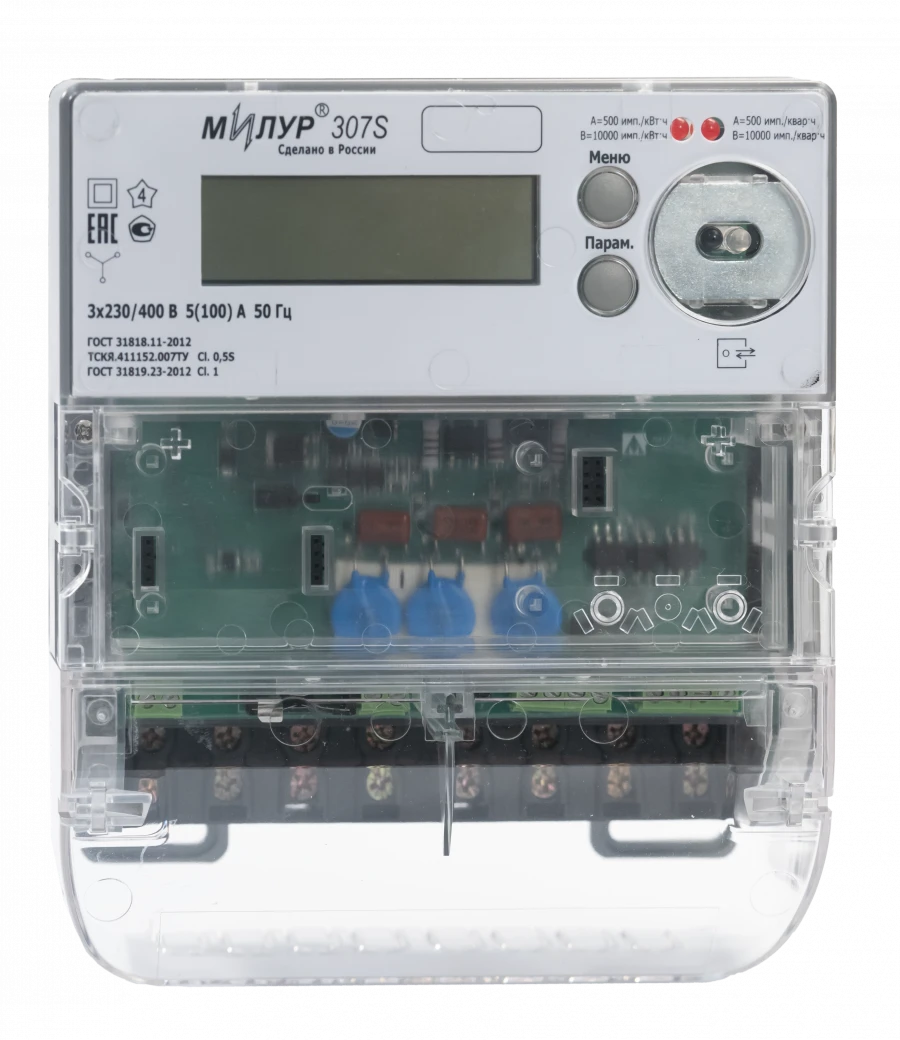

Three-phase static electricity meter "Milur 307S" in 10m housing

Electricity Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Static Milur 307S.12-GRR-2 electricity meter

Description

Milur 307S static three-phase electricity meter with support of SPODES protocol is designed for metering active and reactive electricity consumption in three-wire and four-wire AC networks with frequency 50 Hz, bidirectional energy metering.
The metering device can operate both autonomously and as part of automated metering systems, registering electricity consumption and storing data in non-volatile memory.
Information exchange is carried out through various interfaces and data transmission technologies. The metering device is equipped with an opto-port.
Depending on the version, the meter can be equipped with a load control relay and a measuring element in the neutral wire.

Specifications

Type Multi-tariff

Number of phases 3

Type of metered energy Active

Minimum operating temperature -50 °C

Maximum operating temperature 70 °C

Maximum current 100 A

Mounting method To the screws

Accuracy class 0,2S / 0,5; 0,5S / 1

Rated current 5 A

Nominal voltage 230...400 V

Housing material Plastic

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
