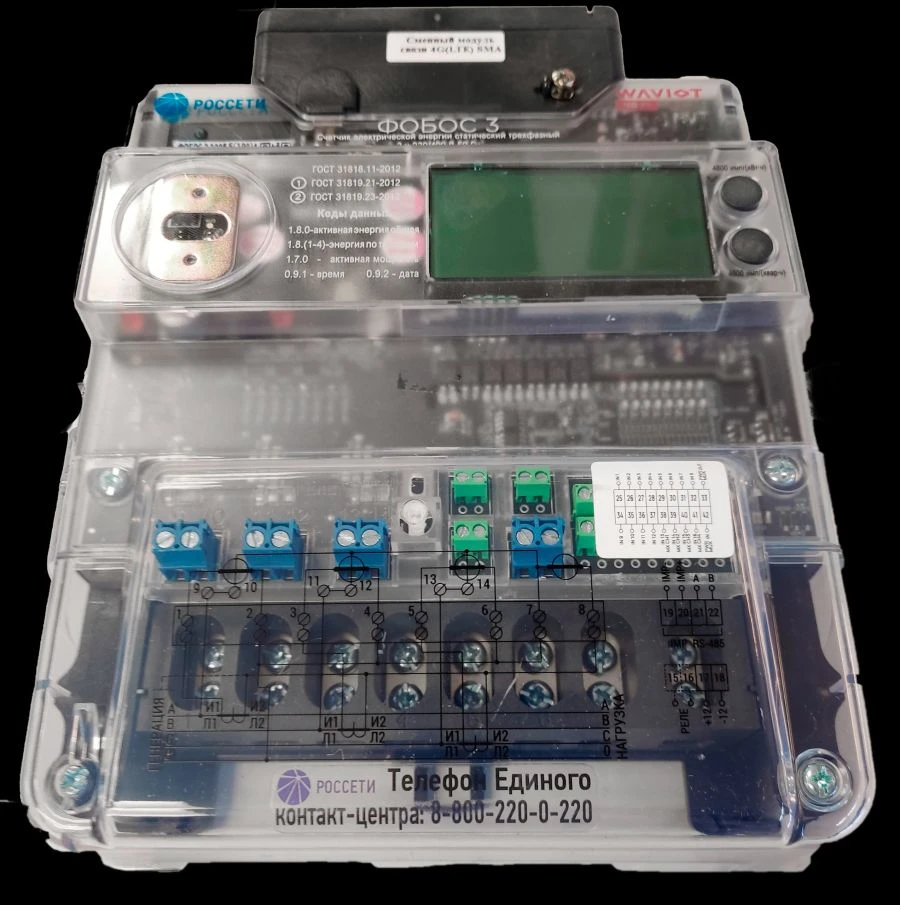

Electricity meter static three-phase FOBOS 3T 230V 5(10)A IQORT(16)LM-A 4G(LTE) SMA

The meter is designed for multi-tariff metering of active and reactive electrical energy in accordance with the requirements of GOST 31818.11-2012, GOST 31819.21-2012, GOST 31819.23-2012, measurement of network parameters and quality indicators of electrical energy in accordance with the requirements of GOST 30804.4.30-2013 in three-phase four-wire and three-wire electrical networks of alternating current with frequency of 50 Hz. The meter is designed for operation both as an independent device and as part of information measurement systems, software and hardware complexes of control and commercial electricity metering. A distinctive feature of the modification of the meter is: transformer inclusion (using a current transformer); availability of communication interfaces NB-Fi, RS-485, sixteen inputs of telesignalling, interchangeable communication module 4G (LTE) with an external antenna; maximum current 10 A; installation of the meter panel on screws or DIN rail.
