Available for Import

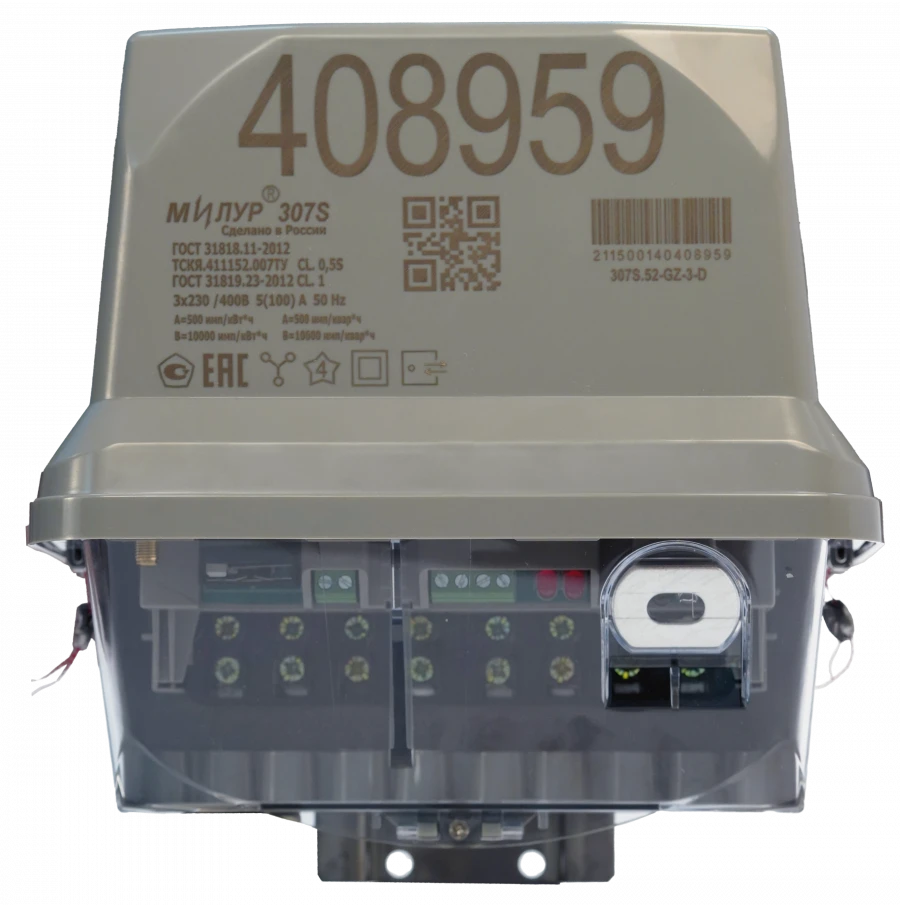

Milur 307 three-phase static electricity meter with SPODES protocol support in SPLIT case
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Milur 307 static three-phase electricity meter with support of SPODES protocol in SPLIT case for outdoor installation with load control relay is designed for metering of active and reactive consumed electricity in two-wire AC network with frequency 50 Hz.
The measuring unit of the outdoor metering device transmits information about the consumed volume of electric power to the measuring indication unit of the consumer.
"Milur T" via RF 433 MHz radio interface according to Mi107 protocol. Data exchange with automated metering systems or a computer is carried out via various interfaces and data transmission technologies. The meter is equipped with an opto-port. Depending on the version, the meter can be equipped with a measuring element in the neutral wire.
The measuring unit of the outdoor metering device transmits information about the consumed volume of electric power to the measuring indication unit of the consumer.
"Milur T" via RF 433 MHz radio interface according to Mi107 protocol. Data exchange with automated metering systems or a computer is carried out via various interfaces and data transmission technologies. The meter is equipped with an opto-port. Depending on the version, the meter can be equipped with a measuring element in the neutral wire.
Specifications
Type
Static electricity meter
Number of phases
3
Type of readout device
Static
Type of metered energy
Active and reactive
Minimum operating temperature
-50 °C
Maximum operating temperature
70 °C
Maximum current
100 A
Mounting method
for 3 points
Rated current
5 A
Accuracy class
0,5S / 1
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
