Thermal resistance transmitters ????- ?1?-???

Temperature Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Resistance thermocouples K1I-KPn Resistance temperature transmitters TSPg-K1I-KPv Resistance temperature transmitters TSPg-K1I-KKn Thermal resistance transmitters ???? (????)-K1I-KP

Description

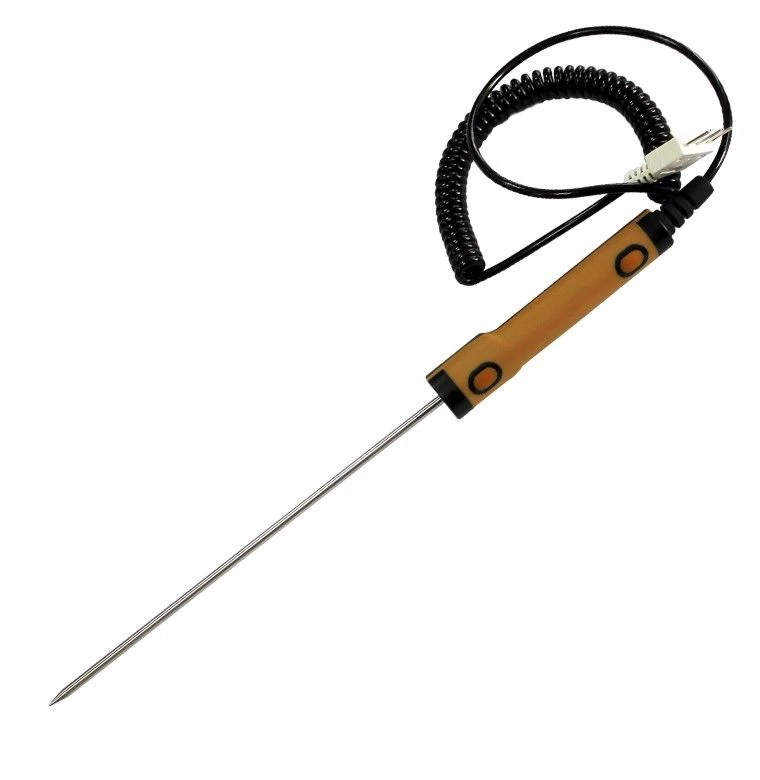

Resistance thermocouples with sensing elements made of platinum TSPg, design version K1I-KKv are intended for use in portable and stationary temperature meters, in particular, in the precision temperature meter IT-8. GOST6651. Thermal converters are designed for operation at ambient air temperature from minus 50 to plus 85 C, relative humidity up to 95% at +35 C and atmospheric pressure from 84 to 106 kPa. Thermal converters are made in climatic version UHL 3.1 according to GOST15150-69. By degree of protection against dust and water penetration thermal converters correspond to IP 54 according to GOST 14254-96. According to the method of protection against electric shock thermal converters are made as a product of III class according to GOST 12.2.007.0-75.

Specifications

Minimum immersion depth 60 mm

Connection diagram 3-wire

Rated static characteristic (RSC) 50P, 100P, Pt100, Pt1000

Thermal converter type platinum

Temperature measurement range -70...350 °C

Maximum immersion depth 200 mm

Connection cable length 4 m

Diameter of the mounting part 5 mm

Length of mounting part 500 mm
